Vulcan C24EO5 5-Pan Boilerless Electric Countertop Convection Steamer

$12,412.00 ~~Sale price$31,857.00you save $19,445.00~~

Key Features:

Boilerless/Connectionless Design: Integrated water reservoir at the base of the cooking compartment eliminates the need for a water line or drain connection, reducing installation costs and offering maximum placement flexibility in any commercial kitchen.
5-Pan Capacity: Accommodates five full-size 12" x 20" pans in a single compartment, delivering high-volume output in a compact countertop footprint.
High-Efficiency Convection Steam System: Solid sheathed tubular heating elements provide consistent thermal heat transfer and even steam distribution throughout the cavity for reliable, uniform cooking results.
Operator-Friendly Manual Controls: Features a 60-minute timer with audible buzzer, constant steam mode, cook/ready indicator light, and a straightforward power switch for fast, intuitive operation by any kitchen staff member.
Low Water Alert: Built-in low water indicator light paired with an audible signal ensures operators are promptly notified before the reservoir runs dry, preventing downtime and equipment damage.
All Stainless Steel Construction: Full stainless steel exterior and cooking compartment deliver superior corrosion resistance, simplified sanitation, and long-term durability in demanding foodservice environments.
Heavy-Duty Door with Long-Life Gasket: Robust door and latch mechanism paired with Vulcan's exclusive pan guard and long-life door gasket maintain a consistent steam seal and protect against wear over extended use cycles.
ENERGY STAR Certified: Meets ENERGY STAR efficiency standards, helping operators reduce energy consumption and lower operating costs without sacrificing steaming performance.
UL Listed: UL certification confirms the unit meets rigorous safety and reliability standards required for commercial foodservice installations.
Countertop Configuration: Compact countertop design conserves valuable floor space, making it well-suited for high-density kitchens in restaurants, healthcare facilities, and school cafeterias.
12 kW Electric Power at 208V, 3-Phase: Delivers consistent, powerful steam generation at 12 kW for fast heat recovery and sustained throughput during peak service periods.

Detailed Description

The Vulcan C24EO5 is a commercial-grade boilerless/connectionless electric countertop convection steamer designed for high-volume operations in restaurants, healthcare facilities, and institutional kitchens. Its boilerless design eliminates the need for a dedicated water line or drain connection, allowing flexible placement anywhere a 208V electrical connection is available while dramatically reducing boiler-related maintenance. The unit accommodates five full-size 12 x 20 pans within a single stainless steel cooking compartment, delivering fast throughput via solid sheathed tubular elements with efficient thermal heat transfer. Operator-friendly manual controls include a 60-minute timer, constant steam feature, cook/ready indicator light, and a low water light with audible signal. Energy Star certified and built entirely from stainless steel, the C24EO5 is a durable and energy-efficient workhorse for demanding professional kitchens.

Product Details

Boilerless Convenience

No water or drain connection required -- manually filled reservoir allows flexible placement anywhere.

12 kW Electric Power

208V, 3-phase, 12 kW tubular heating elements deliver consistent, even steam distribution.

Operator-Friendly Controls

60-minute timer, constant steam feature, cook/ready light, and audible low-water signal.

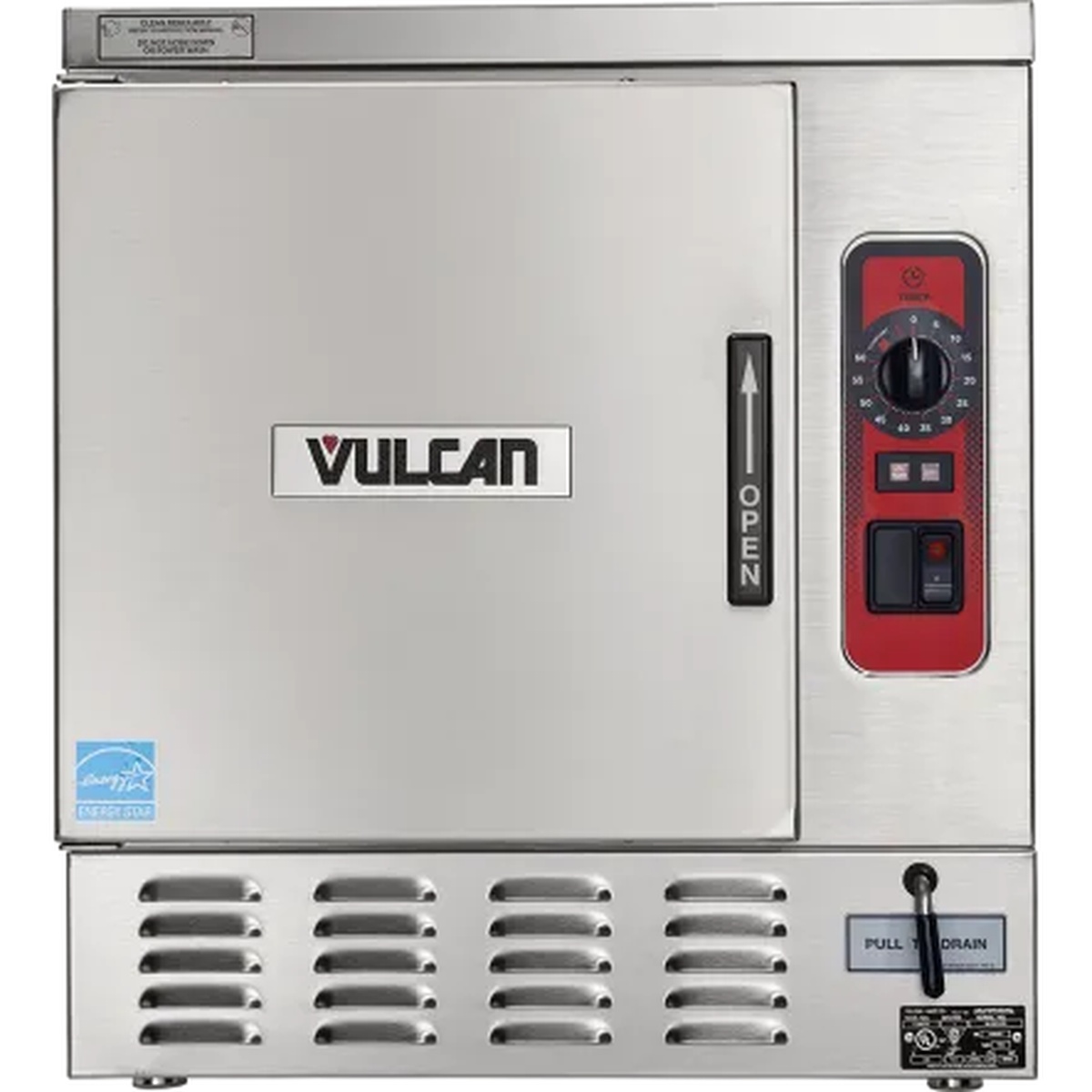

Vulcan C24EO5 countertop electric boilerless steamer, front view showing stainless steel door, control panel, and pull-to-drain handle

5-Pan Capacity in a Compact Countertop Footprint

The Vulcan C24EO5 holds five full-size 12" x 20" pans in a single cooking compartment -- delivering high-volume output without sacrificing valuable floor space.

Countertop profile: 24"W x 33"D x 26"H
Stainless steel exterior and cooking compartment
Heavy-duty door, latch, and long-life door gasket
Exclusive Vulcan pan guard for added protection

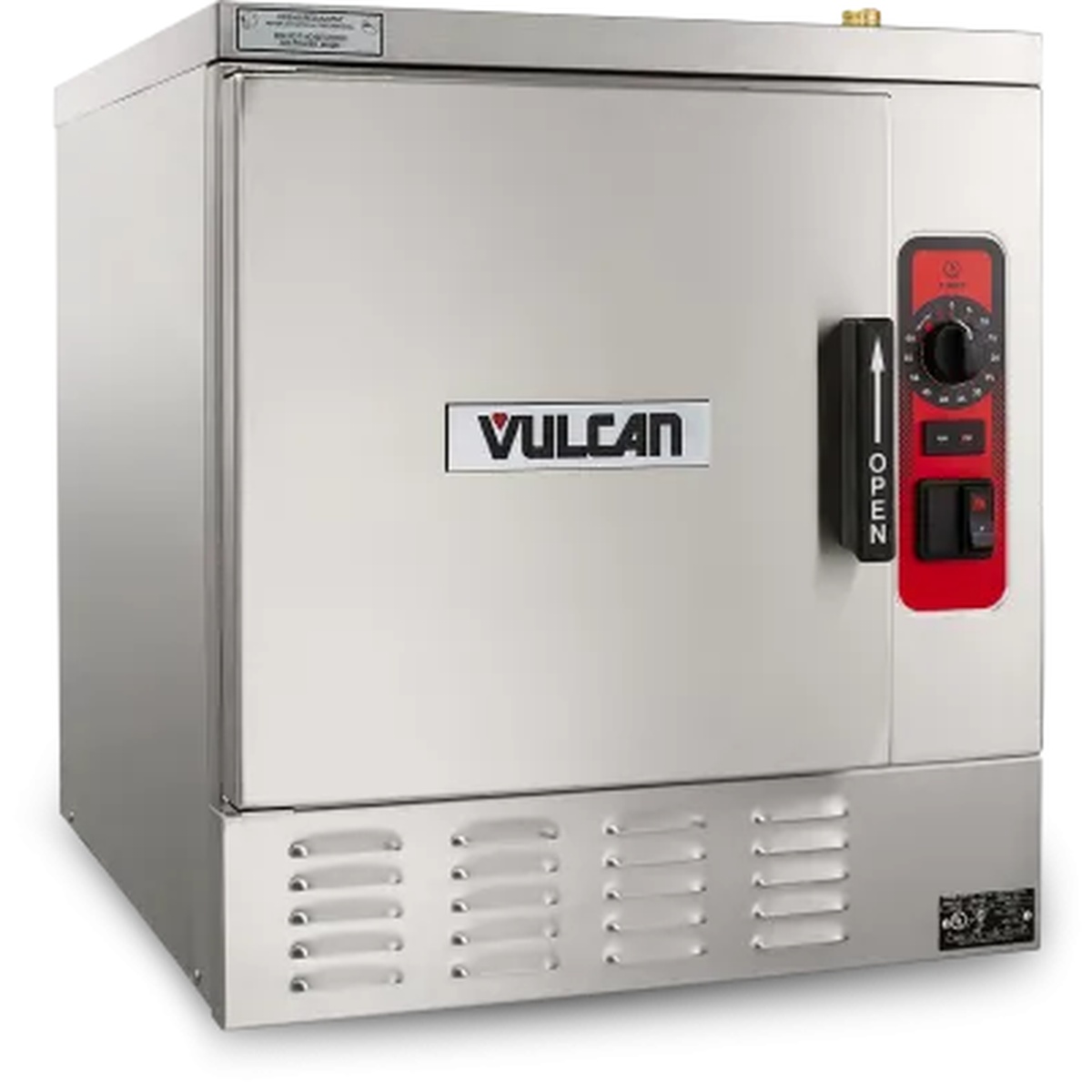

Vulcan C24EO5 countertop electric steamer, three-quarter angle view showing stainless steel construction and side panel

No Boiler, No Hassle -- Just Pure Steam Performance

The connectionless design eliminates costly plumbing installations and boiler maintenance entirely. A water reservoir at the base of the cooking compartment is simply filled before use, so steam is always ready when you need it.

Eliminates external steam source and boiler upkeep
Prevents condensate buildup on food in the cavity
Solid sheathed tubular elements for even heat transfer
ENERGY STAR certified for reduced energy consumption

Key Specifications

Pan Capacity5 Pans (12" x 20")

Power Input12 kW / 208V / 3-Phase

Amperage33.3 Amps / 60 Hz

Steam SourceBoilerless / Connectionless

ConstructionAll Stainless Steel

CertificationsENERGY STAR, UL Listed

Ideal For

Commercial Restaurants Healthcare Facilities School Cafeterias Institutional Kitchens High-Volume Food Service

From the Cresco Resco Team

Why You'll Love It

The Vulcan C24EO5 brings professional-grade boilerless steam cooking to any countertop -- no plumbing, no boiler, no compromise on performance.

Perfect for commercial kitchens, cafeterias, and healthcare facilities needing reliable, high-capacity steam cooking.
The connectionless design eliminates installation complexity and ongoing boiler maintenance costs.
ENERGY STAR certification and all-stainless construction make it an efficient, long-lasting investment for demanding operations.

Specifications

Model	C24EO5
Type	Boilerless / Connectionless Convection Steamer
Configuration	Countertop
Pan Capacity	5 Pans (12" x 20")
Number of Compartments	1
Power Type	Electric
Input	12 kW
Voltage	208V
Phase	3 Phase
Amperage	33.3 Amps
Frequency	60 Hz
Plug Type	Hardwire
Pressure	Without Pressure
Control Type	Manual Dial / Push-Button; 60-minute timer with buzzer, constant steam feature, cook/ready light, and power switch
Construction	Stainless Steel (exterior and cooking compartment)
Width	24"
Depth	33"
Height	26"
Product Weight	170 lb
Shipping Weight	210 lb
Certifications	ENERGY STAR, UL
