Vulcan FEG

Vulcan C24EO3AF 3-Pan Boilerless Electric Countertop Convection Steamer with Auto-Fill, 208V/3-Phase, 8 kW

$12,992.00 ~~Sale price$27,128.00you save $14,136.00~~

Key Features:

3-Pan Boilerless Convection Steamer: Accommodates (3) 12" x 20" x 2-1/2" full-size steam pans in a single compartment, delivering high-volume cooking output from a compact countertop footprint (24" W x 33" D x 20" H).
Proprietary Steam Sensing Technology: Rapid convection steam generation uses no fans or moving parts, reducing mechanical wear and maintenance while ensuring consistent, even heat distribution throughout the cavity.
Auto-Fill with Electronic Level Sensing: Automatically refills the generator pan when water runs low; includes an overfill sensor with shutoff and audible buzzer to prevent overflow and protect unit components.
Embedded Tubular Heating Elements: Solid sheathed heating elements are not exposed to water, preventing scale buildup on elements and eliminating the need for water filtration, treatment, or de-liming.
Water-Resistant Mechanical Controls with 60-Minute Timer: Intuitive dial-style controls include a 60-minute timer with audible end-of-cook buzzer, constant steam setting, and load-compensation feature that automatically adjusts cook time during loading and unloading cycles.
Low Water, Cook, and Overfill Indicator Lights: Three-status indicator panel gives operators at-a-glance monitoring of water level and cooking status, reducing the risk of operator error during high-volume service.
Front-Venting Design: All venting is directed to the front of the unit, minimizing required side clearances and making it easier to fit into tight countertop configurations.
Heavy-Duty Interlocked Two-Panel Door: Stainless steel door with pan guard can be safely opened during the cooking cycle; positive-close latch and automatic pan aligner ensure secure, efficient operation.
304 Series Stainless Steel Construction Throughout: Steamer cavity, exterior panels, and door are all constructed from stainless steel for long-term durability and easy sanitation.
Dishwasher-Safe, Removable Components: One-piece wire pan racks and steam panel are dishwasher safe; side panels are fully removable for quick service access, reducing cleaning and maintenance time.
Field-Convertible Electrical Configuration: Ships configured for 208V/60Hz/3-phase (8 kW, 22.2A) service; can be field converted to 208V/1-phase, 240V/3-phase, or 240V/1-phase to suit a range of installation environments.
ENERGY STAR Certified: Meets ENERGY STAR efficiency standards, supporting lower operating costs and sustainability goals in commercial kitchen operations.
Single Water Line Connection with Flexible Drain: Requires only a single plumbed water line connection; front-accessible pull-to-drain lever and included flexible drain hose simplify installation and daily draining.

Detailed Description

The Vulcan C24EO3AF is a high-performance boilerless countertop convection steamer engineered for demanding commercial kitchens, healthcare facilities, and institutional foodservice operations. Holding three full-size 12 x 20 pans simultaneously, it leverages proprietary steam sensing technology with no fans or moving parts for rapid, consistent cooking results. The auto-fill system with electronic level sensing continuously maintains water supply, while embedded tubular heating elements never contact water directly, drastically reducing scale buildup and eliminating the need for deliming or water filtration. Water-resistant mechanical controls, a 60-minute load-compensating timer, and a front-venting design make this unit exceptionally operator-friendly and easy to fit into tight countertop spaces. Built entirely from 304-series stainless steel with dishwasher-safe removable pan racks and side panels, the C24EO3AF delivers long-term durability with minimal maintenance demands.

Product Details

60-Minute Timer with Load Compensation

Adjustable timer with audible buzzer accounts for loading and unloading so cooking stays on track.

Boilerless Auto-Fill Design

Electronic level sensing automatically refills water when low with no filtration or deliming ever needed.

All-Stainless Steel Construction

304 Series stainless steel cooking cavity and exterior with dishwasher-safe removable pan racks and side panels.

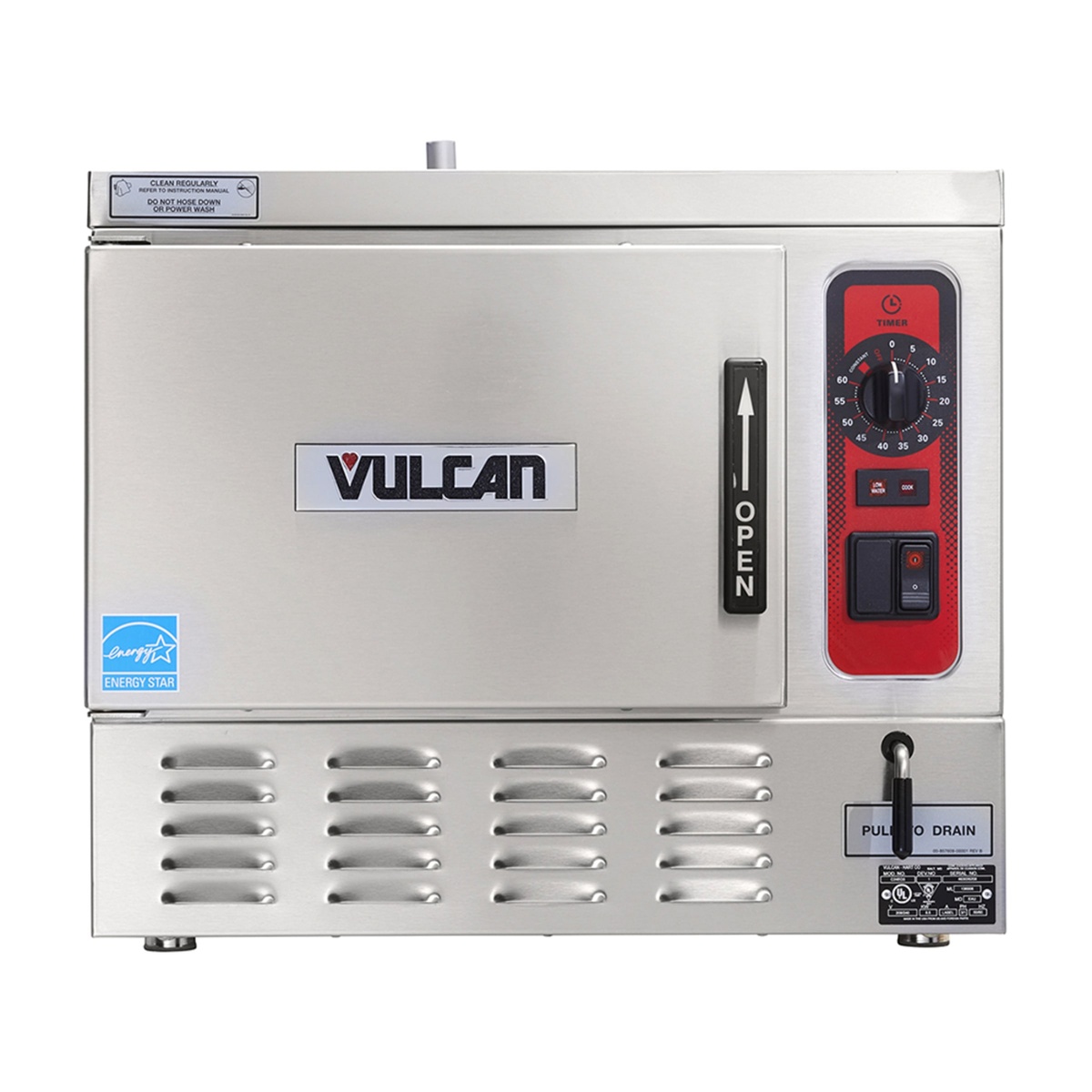

Vulcan C24EO3AF countertop convection steamer front view showing stainless steel door and front-venting base

3-Pan Countertop Convection Steamer Built for High-Volume Kitchens

The Vulcan C24EO3AF is a boilerless electric countertop steamer designed to handle the demands of commercial kitchens, healthcare facilities, school cafeterias, and institutions. Its compact footprint fits tight countertop spaces while delivering serious cooking capacity.

Accommodates (3) 12" x 20" x 2-1/2" full-size steam pans simultaneously
Front-venting design eliminates the need for side clearances
ENERGY STAR qualified for efficient operation
8 kW electric power at 208V/3-phase for consistent steam production

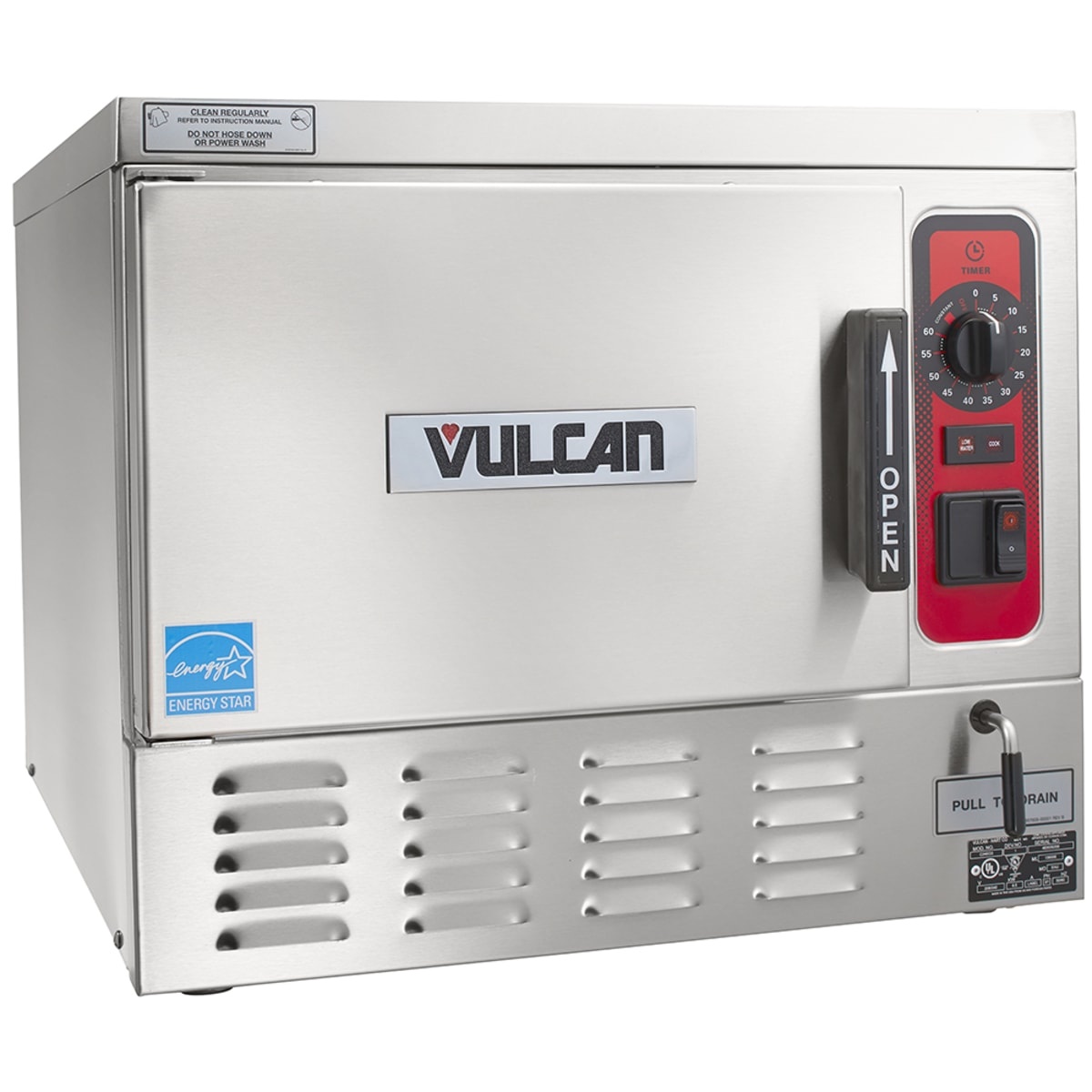

Vulcan C24EO3AF convection steamer angled three-quarter view showing stainless exterior and control panel

Heavy-Duty Stainless Steel Built to Last

Every surface of the C24EO3AF is constructed from durable stainless steel, combining professional aesthetics with the rugged performance commercial operations demand. The two-panel heavy-duty door includes a pan guard and can be opened throughout the cooking cycle without interrupting steam production.

Stainless steel exterior and 304 Series stainless cooking compartment
Two-panel door with pan guard and positive-close latch
Dishwasher-safe one-piece wire pan racks and steam panel
Removable side panels for easy service access

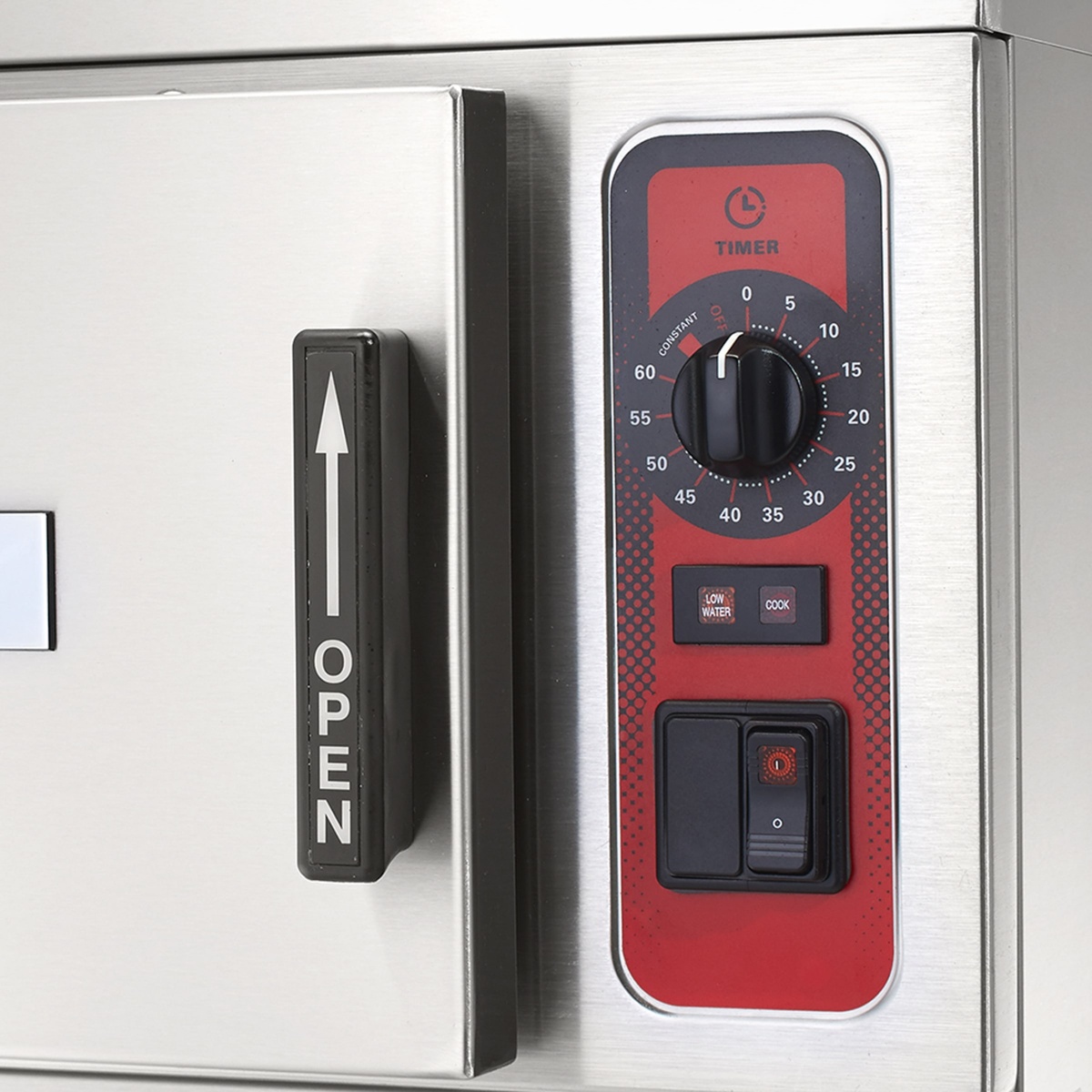

Close-up of Vulcan C24EO3AF control panel showing 60-minute timer dial, low water and cook indicator lights

Intuitive Water-Resistant Manual Controls

The water-resistant mechanical control panel is designed to be operator-friendly so any team member can run the unit confidently. Real-time indicator lights keep operators informed while the timer keeps cooking precise and consistent.

60-minute timer with audible buzzer signals cooking completion
Constant steam feature for continuous production
Low water and cook indicator lights for at-a-glance monitoring
Load compensation adjusts timer automatically during loading and unloading

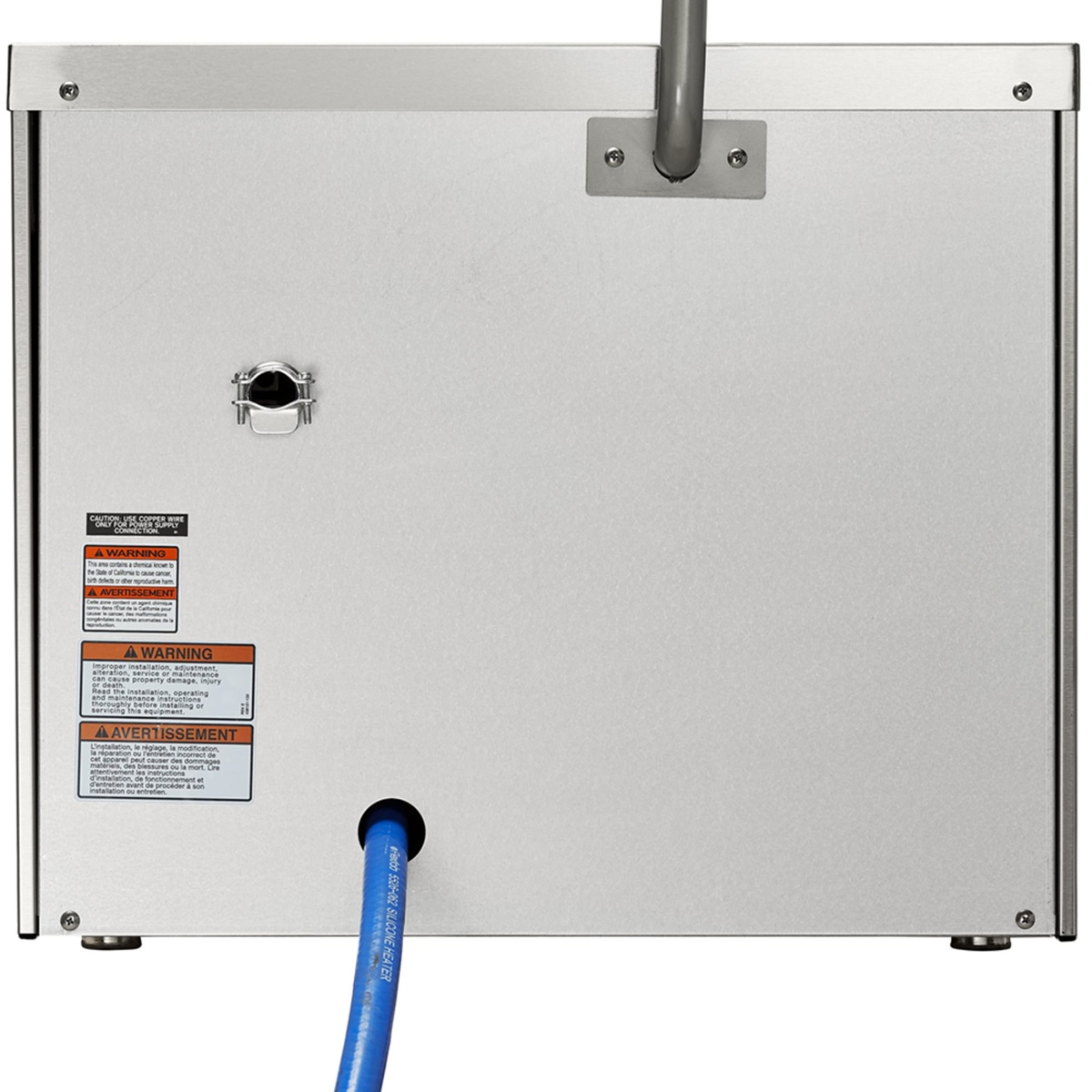

Back panel of Vulcan C24EO3AF steamer showing plumbed water connection and flexible drain hose

Simple Plumbed Installation with No Special Water Treatment

The C24EO3AF connects to a single standard water line and includes a flexible drain hose, making installation straightforward. Unlike many steamers, this unit requires no water filtration, treatment, or deliming, reducing ongoing maintenance costs and downtime.

Single 3/4" water line connection with flexible drain hose included
No water filtration system or deliming chemicals required
Front-accessible drain lever for easy water removal
Embedded heating elements do not contact water, reducing scale buildup

From the Cresco Resco Team

Why You'll Love It

The Vulcan C24EO3AF delivers reliable, high-volume steam cooking in a compact countertop footprint with minimal maintenance demands.

Ideal for commercial kitchens, school cafeterias, and healthcare facilities that need consistent, high-output steaming without complex upkeep.
The boilerless auto-fill design with no filtration or deliming requirements keeps operating costs low and unit uptime high.
Field-convertible electrical configuration (208/240V, 1 or 3 phase) provides flexibility for a wide range of installation environments.

Specifications

Brand	Vulcan
Model	C24EO3AF
Series	C24 Series
Product Type	Convection Steamer
Steam Source	Boilerless
Placement	Countertop
Pan Capacity	3 Full-Size Pans (12" x 20" x 2-1/2")
Number of Compartments	1
Construction	Stainless Steel Exterior; 304 Series Stainless Steel Cooking Cavity
Controls	Manual (Water-Resistant Mechanical)
Timer	60-Minute with Audible Buzzer; Constant Steam Setting; Load Compensation
Indicators	Low Water, Cook, and Overfill
Water Supply	Plumbed (Auto-Fill); Single Water Line Connection
Water Inlet Size	3/4"
Drain	Front Pull-to-Drain Lever; Flexible Drain Hose Included
Venting	Front-Venting
Power Type	Electric
Voltage	208V
Phase	3-Phase
Wattage	8 kW
Amperage	22.2A
Hertz	50/60 Hz
Plug Type	Hardwire
Width	24"
Depth	33"
Height	20"
Shipping Weight	145 lb.
Certifications	Energy Star
Warranty	1-Year Limited Parts & Labor
UPC	400013823960
