Everpure EV932523 Insurice Triple PF-i4000² Water Filtration System with Pre-Filter

$1,343.46 ~~Sale price$1,957.61you save $614.15~~

Key Features:

Designed for High-Production Ice Machines: The Insurice Triple PF-i4000² system is purpose-built for high-volume commercial ice machines in hotels, healthcare facilities, and foodservice operations, delivering a consistent 5 GPM flow rate to keep up with demand.
Triple i4000² Primary Filtration: Three Pentair Everpure i4000² Micro-Pure® II Precoat cartridges work in parallel to filter down to 0.5 microns, effectively reducing chlorine, taste, odor, scale, sediment, cysts, and bacteria for cleaner, better-tasting ice.
20" Pre-Filter for Extended System Life: An included EC210 20" pre-filter cartridge removes dirt and sediment before water reaches the primary cartridges, protecting downstream filters and significantly extending the service life of the entire system.
36,000-Gallon Total Capacity: With a combined 36,000-gallon capacity and a 0.5-micron rating, this system handles the rigorous demands of continuous commercial use without sacrificing filtration quality.
Integrated Manifold with Dual Pressure Gauges: The manifold features both inlet and outlet pressure gauges for real-time system monitoring, making it easy to identify when cartridges need replacement and to ensure optimal operating pressure (10-125 PSI).
Sanitary Quick-Change Cartridge Design: Internal filter components are never exposed during cartridge replacement, ensuring a hygienic and hassle-free service process with no tools required.
Built-In Water Shutoff and Flushing Valve: A dedicated water shutoff valve and flushing valve are integrated into the manifold, simplifying installation, maintenance, and cartridge changeouts without interrupting the water supply to the rest of the facility.
NSF Certified and Scale Inhibiting: NSF-certified filtration actively inhibits scale formation, protecting the internal components of ice machines from costly damage and reducing overall maintenance and operational costs.
3/4" Inlet and Outlet Connections: Standard 3/4" NPT connections allow for straightforward integration into existing commercial plumbing systems.
5-Year System Warranty: Backed by a 5-year warranty against defects in materials and workmanship (1-year on cartridges), providing long-term peace of mind for commercial operators.

Detailed Description

The Everpure EV932523 Insurice Triple PF-i4000² is a heavy-duty water filtration system purpose-built for high-production commercial ice machines in hotels, healthcare facilities, and demanding foodservice operations. It pairs a 20 pre-filter cartridge with three i4000² Micro-Pure II primary cartridges to deliver comprehensive submicron filtration targeting bacteria, cysts, chlorine, scale, and sediment down to 0.5 microns. With a 36,000-gallon capacity, 5 GPM flow rate, and an operating pressure range of 10-125 PSI, the system reliably keeps ice machines running at peak efficiency while producing clear, great-tasting ice. The sanitary quick-change cartridge design keeps all internal components enclosed during handling, and the manifold integrates a water shutoff valve, flushing valve, and outlet pressure gauge for simple, convenient maintenance.

Product Details

Comprehensive Water Filtration

Reduces chlorine, bacteria, cysts, scale, sediment, and unpleasant taste and odor down to 0.5 microns.

High-Output Flow Rate

Delivers up to 5 GPM flow rate with a 36,000-gallon capacity for high-production ice machines.

Equipment Protection

Scale inhibition and sediment reduction extend the service life of your ice machine's internal components.

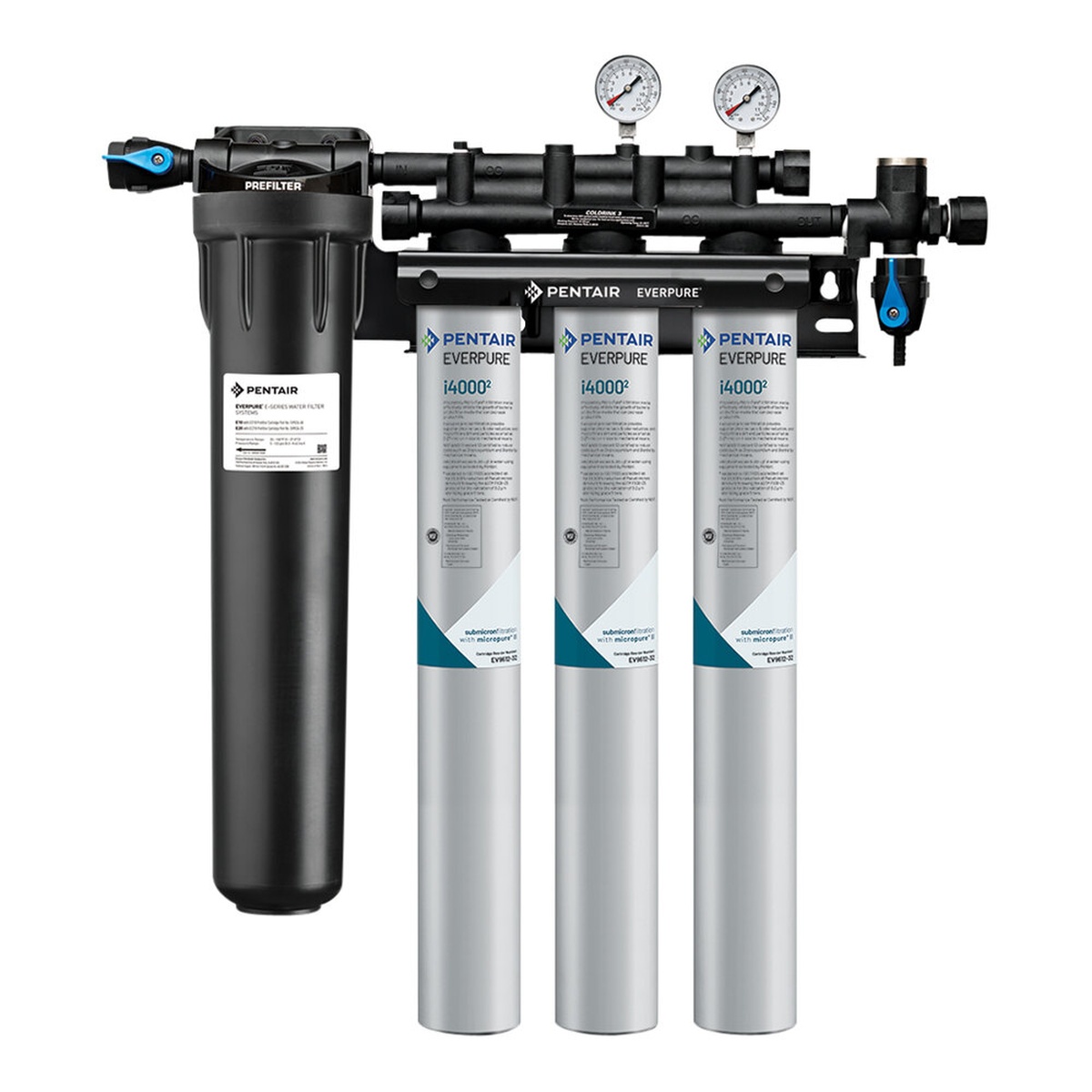

Everpure EV932523 Insurice Triple PF-i4000² water filtration system showing prefilter housing and three i4000² cartridges mounted on manifold with dual pressure gauges

Triple-Cartridge System for High-Volume Ice Production

The Everpure EV932523 Insurice Triple PF-i4000² is engineered for high-production commercial ice machines that demand consistent, high-quality water. The assembly combines one 20" pre-filter with three i4000² Micro-Pure II Precoat primary filtration cartridges mounted on a single manifold.

One EC210 pre-filter reduces dirt and sediment before water reaches primary filters
Three i4000² cartridges deliver powerful multi-stage primary filtration
Inlet and outlet pressure gauges allow easy system monitoring
Sanitary Quick Change design keeps internal filter parts unexposed during cartridge swaps

Key Specifications

Micron Rating0.5 Microns

Flow Rate5 GPM

Capacity36,000 Gallons

Pressure Range10 - 125 PSI

Max Temperature100°F

Dimensions (W x D x H)25 3/4" x 6" x 29 5/8"

Performance at a Glance

36K

Gallon Capacity

0.5µm

Micron Rating

5 GPM

Max Flow Rate

Ideal For

High-production ice machines Hotels & resorts Healthcare facilities High-volume restaurants Food service operations

From the Cresco Resco Team

Why You'll Love It

The Everpure EV932523 Insurice Triple PF-i4000² delivers the multi-stage filtration power high-volume ice operations demand, combining convenience with serious performance.

Perfect for hotels, healthcare facilities, and any high-production commercial ice machine environment.
The built-in flushing valve, water shutoff, and pressure gauge make routine maintenance simple and fast.
NSF-certified filtration protects your equipment investment while ensuring every batch of ice is clean, clear, and great-tasting.

Specifications

Brand	Everpure (Pentair)
Model Number	EV932523
Series	Insurice®
Type	Water Filtration System
Application	High Volume Ice Machines
Filter Style	Sanitary Quick Change
Number of Primary Cartridges	3 (i4000² Micro-Pure® II Precoat)
Pre-Filter Cartridge	1 x 20" EC210 Prefilter
Capacity	36,000 Gallons
Service Flow Rate	5 GPM
Micron Rating	0.5 Micron
Pressure Range	10 - 125 PSI
Maximum Temperature	100°F
Inlet / Outlet Connection	3/4"
Filtration Targets	Bacteria, Cysts, Chlorine, Scale, Sediment, Taste & Odor
NSF Certified	Yes
Manifold Features	Water Shutoff Valve, Flushing Valve, Inlet & Outlet Pressure Gauges
Width	25 3/4"
Depth	6"
Height	29 5/8"
Weight	23 lb
Warranty - System	5-Year Against Defects in Material & Workmanship
Warranty - Cartridge	1-Year Against Defects in Material & Workmanship
UPC	400012002892
