MANITOWOC

Manitowoc Ice AR-20000-P Arctic Pure Plus Primary Water Filter Assembly - 20,000 gal Capacity

$555.14 ~~Sale price$818.00you save $262.86~~

Key Features:

Arctic Pure Plus Series: Genuine Manitowoc OEM primary water filter assembly designed for seamless integration with compatible Manitowoc cube, flake, and nugget ice machines producing 601-1,000 lbs. of ice per day.
Triple Protection Filtration: Combines ultra-fine 0.5-micron filtration, an antimicrobial silver-impregnated carbon block, and SLOW PHOS scale inhibitor to guard against sediment, bacteria, algae, mold, slime, and scale buildup in a single system.
20,000-Gallon Capacity: High-capacity filter cartridge (K00494) rated for up to 20,000 gallons, reducing the frequency of replacements and minimizing labor and downtime.
95% Chlorine Reduction: Effectively reduces chlorine taste and odor by 95%, and eliminates submicron particles, cryptosporidium, and giardia cysts for clearer, better-tasting ice.
Built-In Pressure Gauge: Integrated pressure gauge allows easy monitoring of filter status; replacement is indicated when pressure drops below 35 PSI or every 6 months, ensuring optimal performance is always maintained.
Complete Assembly Included: Ships with filter head, shroud, mounting hardware, and one K00494 filter cartridge for a straightforward installation right out of the box.
Wide Operating Range: Rated for 35-125 PSI operating pressure, water temperatures of 40-90 degrees F, and ambient air temperatures of 40-110 degrees F, making it suitable for most commercial kitchen environments.
Maximum 1.25 GPM Flow Rate: Delivers consistent water flow up to 1.25 gallons per minute to support high-output ice production without compromising filtration quality.
3-Year Warranty: Backed by a 3-year parts and labor warranty on the head, shroud, hardware, and mounting assembly for long-term reliability and peace of mind.

Detailed Description

The Manitowoc AR-20000-P is a complete Arctic Pure Plus primary water filter assembly engineered specifically for commercial ice machines producing 601 to 1,000 pounds of ice per day. It delivers triple-layer protection against common water quality threats, combining 0.5-micron ultra-fine filtration, an antimicrobial silver-impregnated carbon block, and SLOW PHOS scale inhibition technology to keep ice machines performing at peak efficiency. The system reduces chlorine taste and odor by up to 95 percent while also blocking sediment, cryptosporidium, and giardia cysts, resulting in visibly clearer, better-tasting ice. The assembly ships complete with the filter head, pressure gauge, shroud, mounting hardware, and a K00494 filter cartridge, streamlining both initial installation and ongoing maintenance. With a 20,000-gallon service life and a built-in pressure gauge to signal when replacement is needed, this system is an essential investment for foodservice, healthcare, and hospitality operations.

Product Details

Triple-Action Filtration

Ultra-fine 0.5-micron filtration, antimicrobial carbon block, and SLOW PHOS scale reduction in one system.

Protects Your Ice Machine

Inhibits scale buildup, slows bacterial and mold growth, and removes sediment to extend equipment life.

High-Capacity Performance

20,000-gallon capacity at 1.25 GPM flow rate, sized for machines producing 601-1,000 lbs. of ice per day.

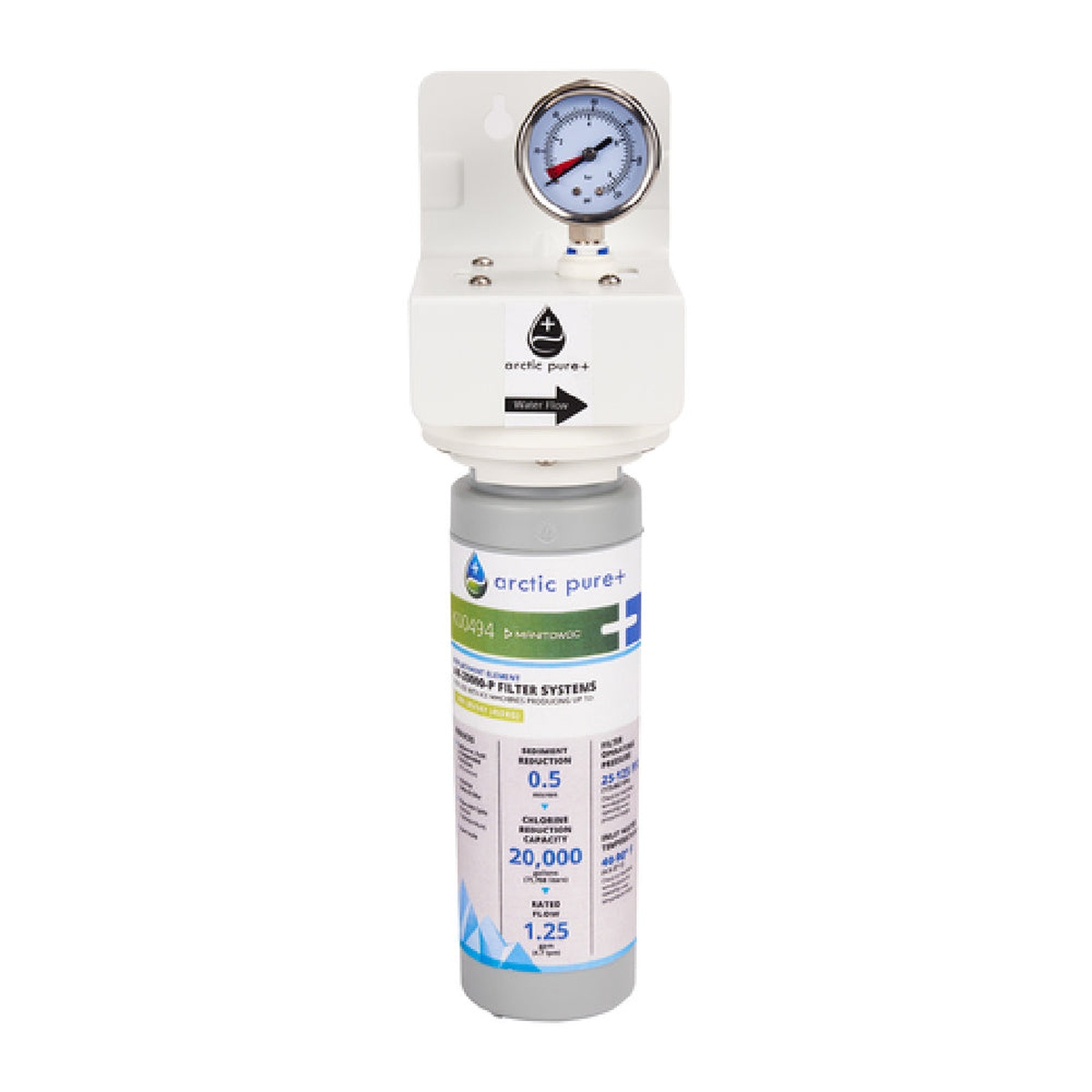

Manitowoc AR-20000-P Arctic Pure Plus water filter assembly with pressure gauge and K00494 filter cartridge

Complete Filter Assembly, Ready to Install

The Manitowoc AR-20000-P Arctic Pure Plus Primary Water Filter Assembly arrives as a fully equipped system, eliminating the guesswork of sourcing individual components. Everything needed for a clean, functional installation is included straight out of the box.

Includes filter head with pressure gauge, shroud, mounting hardware, and K00494 filter cartridge
Designed for vertical installation with 2.5 in. of clearance beneath cartridge for easy replacement
3-year parts and labor warranty on head, shroud, hardware, and mounting assembly
Genuine OEM Manitowoc replacement part for seamless compatibility

Key Specifications

Filter Capacity20,000 gallons

Max Flow Rate1.25 GPM

Micron Rating0.5 micron

Water Temp Range40-90°F (incoming)

Operating Pressure35-125 PSI

Air Temp Range40-110°F

Why Choose the AR-20000-P

95%

Chlorine Reduction

20K

Gallon Capacity

1,000 lb

Daily Ice Output Supported

Compatible Applications

Cube Ice Machines Flake Ice Machines Nugget Ice Machines 601-1,000 lbs/Day Output Food Service Healthcare Facilities Hospitality

From the Cresco Resco Team

Why You'll Love It

The Manitowoc AR-20000-P delivers professional-grade water filtration that keeps your ice machine running cleanly and efficiently for the long haul.

Ideal for high-volume commercial ice machines in restaurants, hotels, and healthcare settings requiring 601-1,000 lbs. of ice per day.
Triple protection removes chlorine, sediment, and microbial growth simultaneously, producing clearer, better-tasting ice with every cycle.
Replace the cartridge every 6 months or when the pressure gauge drops below 35 PSI to maintain peak filtration performance.

Specifications

Part Number	AR-20000-P
Series	Arctic Pure® Plus
Type	Primary Water Filter Assembly (Head with Pressure Gauge & K00494 Cartridge)
Filter Capacity	20,000 gallons
Micron Rating	0.5 micron
Maximum Service Flow Rate	1.25 GPM
Operating Pressure Range	35-125 PSI
Operating Air Temperature Range	40-110°F
Operating Incoming Water Temperature Range	40-90°F
Compatible Ice Machine Output	601-1,000 lbs of ice per day
Compatible Ice Types	Cube, Flake, Nugget
Filter Change Interval	Every 6 months or when pressure drops below 35 PSI
Includes	Filter head, shroud, hardware, mounting assembly, and K00494 filter cartridge
Chlorine Reduction	95%
Overall Dimensions (W x D x H)	4.13 in. W x 4.48 in. D x 15.2 in. H
Weight	3.0 lbs
Warranty	3-Year Parts & Labor (Head, Shroud, Hardware, and Mounting Assembly)
