CMA DISHMACHINES

CMA Dishmachines E-AH-EXT Low Temp Chemical Sanitizing Door-Type Single Rack Dishwasher, 115V

$5,614.00 ~~Sale price$9,356.00you save $3,742.00~~

Key Features:

Low temperature, chemical sanitizing, single rack straight dishwasher designed for efficient "green" operation, using about 1.01 gallons of water per cycle
90-second wash cycle delivers up to 40 racks per hour throughput
Integrated Poly Pro scrap accumulator and scrap tray help keep food soil out of the drain system
Top-mounted controls with built-in chemical pumps plus deliming system to help manage scale buildup
Stainless steel construction with upper and lower stainless wash arms and reinforced end caps for long service life
Auto start when door closes and stops when door opens; extended door opening provides up to 20 1/2 inch dish clearance
115V electrical connection; ENERGY STAR certified and listed to common sanitation and safety standards (ETL, cULus)

Fresno

Usually ready in 2-4 days

Las Vegas

Usually ready in 2-4 days

CMA Dishmachines E-AH-EXT Low Temp Chemical Sanitizing Door-Type Single Rack Dishwasher, 115V

$5,614.00~~$9,356.00~~

Detailed Description

The CMA Dishmachines E-AH-EXT is a low temperature, chemical sanitizing, door-type single rack dishwasher built for efficient straight-thru warewashing. Its 90-second cycle delivers up to 40 racks per hour while using about 1.01 gallons of water per cycle. A top-mounted control box includes chemical pumps and a deliming system, and the integrated Poly Pro scrap accumulator helps keep food soil out of the drain system. Stainless steel construction and reinforced wash arm end caps support long-term durability in busy commercial kitchens.

Product Details

Fast 90-Second Cycles

Keeps warewashing moving with up to 40 racks per hour.

Water-Saving Operation

Uses only 1.01 gallons per cycle for efficient cleaning.

Built for Commercial Use

Stainless steel construction with durable wash arms and reinforced end caps.

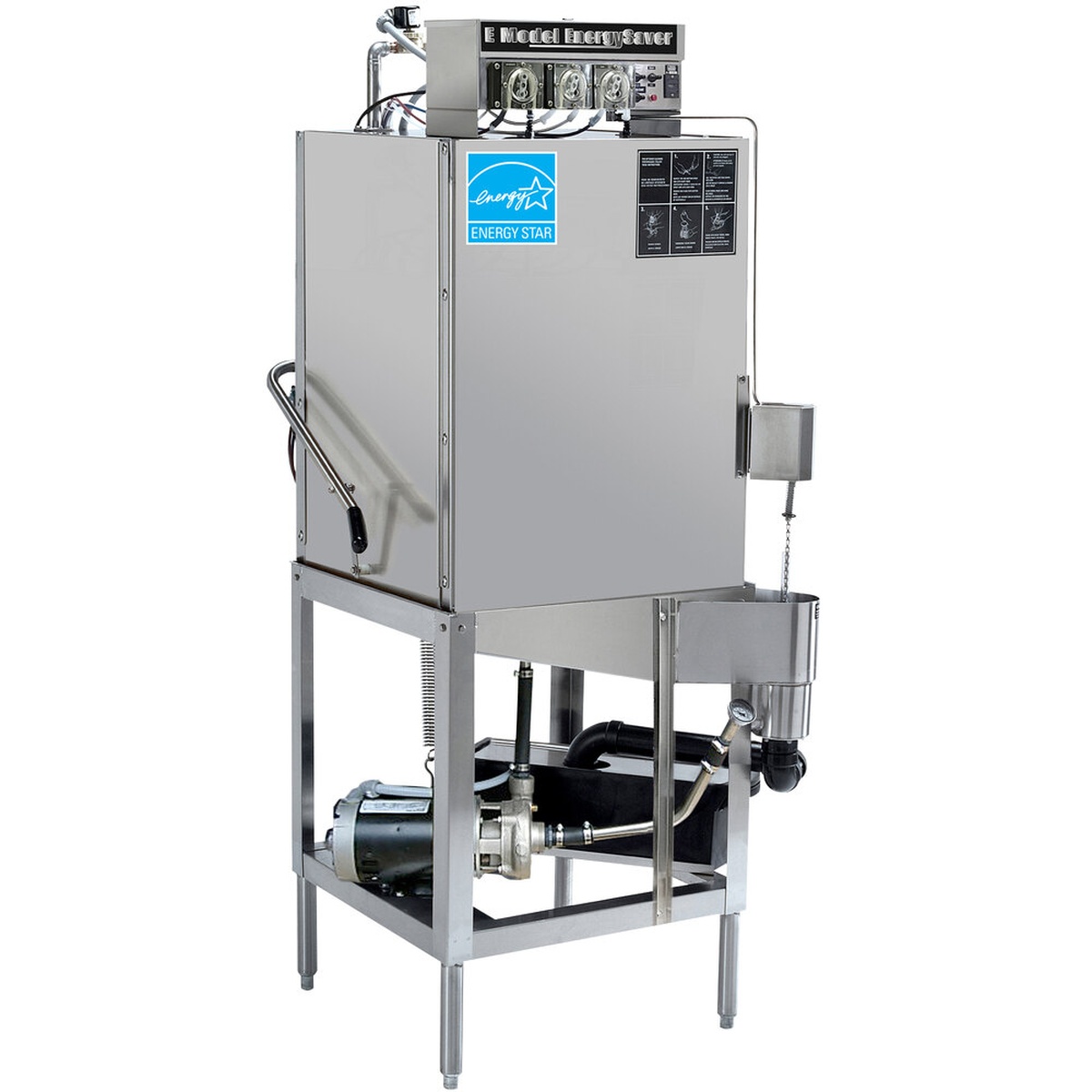

CMA Dishmachines E-AH-EXT extended-door low-temperature door-type dishwasher

Extended-Door, Straight-Thru Workflow

Designed for low-temperature chemical sanitizing with an extended door opening to help load taller wares and keep your dish area moving.

Straight-thru, single-rack door-type design
Top-mounted controls with chemical pumps and deliming system
Integrated Poly Pro scrap accumulator helps keep food soil out of the drain system

Key Specifications

OutputUp to 40 racks per hour

ControlsTop mounted; chemical pumps and deliming system

Door Clearance20 1/2 in inside chamber clearance

CertificationsETL-Sanitation, cULus

Why Choose This Model

90 sec

Total Cycle Time

Racks per Hour

1.01 gal

Water per Cycle

Ideal For

Restaurants and cafes Catering and banquet kitchens Operations needing low-temp chemical sanitizing

From the Cresco Resco Team

Why You'll Love It

A water-saving, low-temperature door-type dishwasher designed to deliver consistent throughput with simple, durable operation.

Great for steady service where 40 racks per hour keeps the line moving.
Top-mounted controls with chemical pumps and a deliming system help support day-to-day reliability.
Poly Pro scrap accumulator helps reduce debris in the drain system for smoother operation.

Specifications

Manufacturer	CMA Dishmachines
Model	E-AH-EXT (Extended-Door)
Dishwasher Type	Door-type, single rack, straight-thru
Sanitizing Method	Low temperature, chemical sanitizing
Rack Capacity	Approx. 40 racks/hour
Cycle Time	90 seconds
Water Usage	1.01 to 1.1 gallons per cycle (reported)
Maximum Dish / Chamber Clearance	20 1/2 in
Overall Dimensions (W x D x H)	25 3/4 in x 25 3/4 in x 59 to 60 in
Electrical	115V, 60 Hz, 1 phase
Wash Pump	1 HP
Controls	Top-mounted; includes chemical pumps and deliming system
Soil Removal	Poly Pro scrap accumulator / scrap tray
Construction	Stainless steel
Certifications	ENERGY STAR; ETL-Sanitation; cULus (reported)
Approx. Shipping Weight	256 to 260 lb (reported)
UPC	400010554430
