CMA DISHMACHINES

CMA Dishmachines 180TS NO BOOST 208-2403 High-Temp Straight-Thru Tall Door Dishwasher, 208/240V 3-Phase

$12,435.00 ~~Sale price$20,725.00you save $8,290.00~~

Key Features:

High temperature, straight through, single rack door type dishwasher with split door design and 27 inch door opening for tall wares and sheet pan clearance
Fast 1 minute wash cycle cleans up to 60 racks per hour with a 1 HP wash pump and upper and lower rotating wash and rinse arms
Automatic soil purging system with external scrap accumulator drawer to keep wash water cleaner and simplify debris removal
Economical water use per cycle (value varies by source) for efficient operation
Top mounted, water tight control box with rack counter, delimer switch, and easy to read controls and gauges
Stainless steel construction with pull pin, easily removable wash arms for cleaning and maintenance
Built in chemical resistant 7 kW tank heater; no booster configuration requires 180 degrees Fahrenheit incoming water for sanitizing rinse
Certifications include ENERGY STAR, NSF, UL, and cULus (varies by listing)

Detailed Description

The CMA Dishmachines CMA-180T-S is a high-temperature, straight-thru, single-rack door-type dishwasher built for fast turnaround in busy dishrooms. Its split-door design provides 27-inch door clearance for larger wares and sheet pan loading while keeping open-door height lower for tighter spaces. With a 1 HP wash pump and a 1-minute cycle, it can wash up to 60 racks per hour while using 1.24 gallons per cycle. Stainless steel construction, rotating wash and rinse arms, and an automatic soil purging system help keep cleaning performance consistent and maintenance straightforward.

Product Details

High Throughput

Designed to wash up to 60 racks per hour for fast turnarounds.

High-Temp, Straight-Through Design

Door-type, straight-thru workflow with high-temperature sanitizing.

Built for Professional Standards

Certifications and heavy-duty construction for daily commercial use.

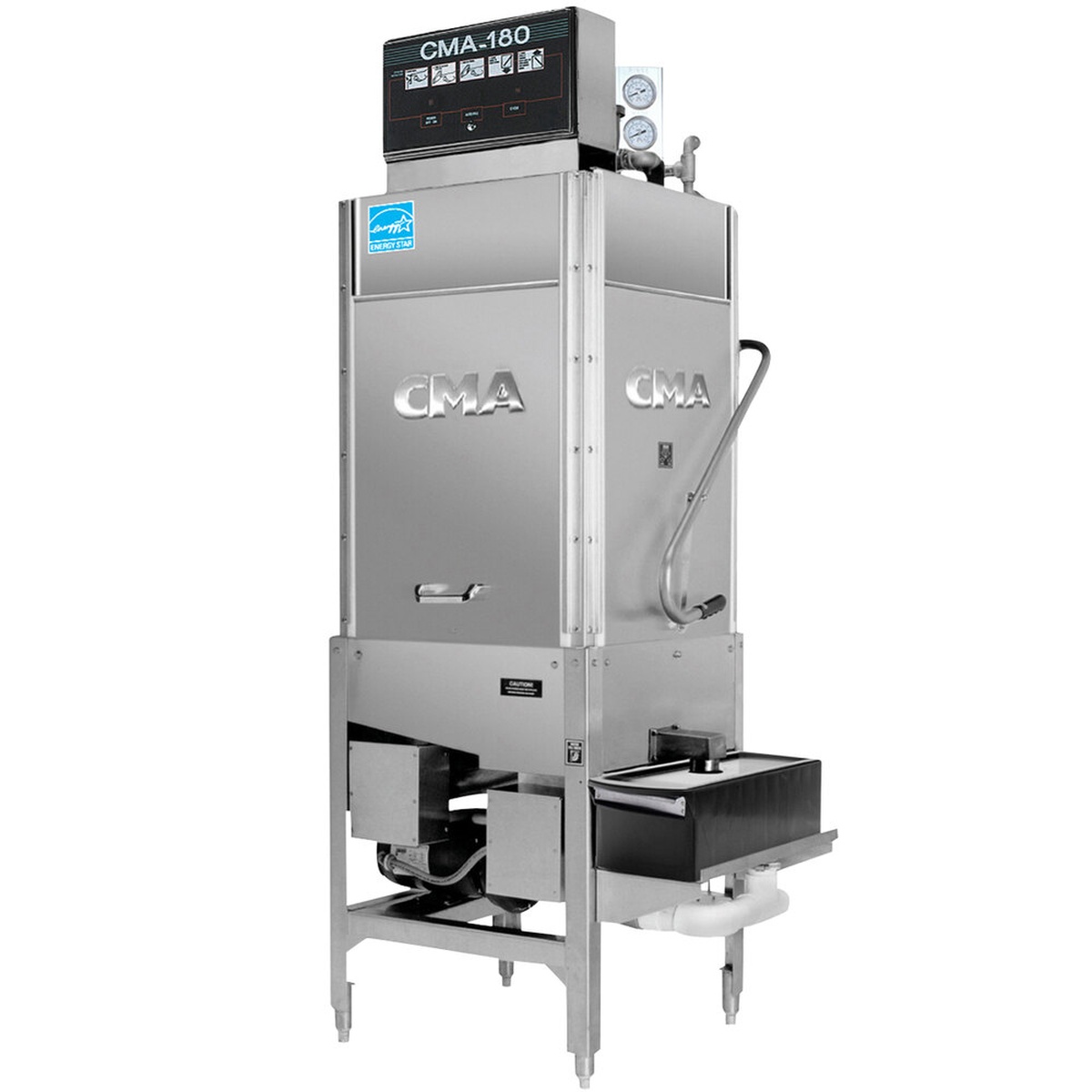

CMA 180 series stainless steel door-type commercial dishwasher

Fast, Reliable Single-Rack Washing

The CMA 180-TS is a high temperature, door-type dishwasher designed for efficient straight-through dishroom flow.

Up to 60 racks per hour capacity
Split-door design with 27 inch dish clearance
Top-mounted control box for easy access

Why Choose This Model

Racks per Hour

27 in

Dish Clearance

Straight

Through Workflow

Designed for Cleaner Operation

Features help keep wash water cleaner and simplify maintenance in busy kitchens.

Automatic soil purging system
External scrap accumulator and removable scrap drawer
Interchangeable wash arms with pull-pin design

Ideal For

Restaurants Cafeterias Hotels Catering kitchens

From the Cresco Resco Team

Why You'll Love It

A dependable, high-temperature door-type dishwasher built to keep dish flow moving during peak service.

Great for operations that need fast, repeatable rack washing.
Split-door and tall clearance accommodate larger items.
Soil purging and external scrap collection help support cleaner cycles.

Specifications

Manufacturer	CMA Dishmachines
Model	CMA-180T-S (CMA-180-TS)
Type	Single rack, high-temperature, straight-through (door type)
Door Opening / Dish Clearance	27 in
Racks per Hour	Up to 60
Wash Pump	1 HP
Wash/Rinse Arms	Upper and lower rotating; pull-pin removable design
Soil Removal	Automatic soil purging system with external scrap accumulator/drawer
Controls	Top-mounted, water-tight control box (rack counter and delime switch noted)
Tank Heater	Built-in 7 kW tank heater (chemical resistant)
Electrical	208/240V, 60 Hz, 3 phase
Overall Dimensions (W x D x H)	25 1/2 in x 25 in x 70 in
Approx. Shipping Weight	353 lb
Construction	Stainless steel
Certifications	NSF; cULus/UL; ENERGY STAR
