Jackson WWS AJX-44CE High-Temp Conveyor Dishwasher (225 Racks/Hour)

$21,333.00 ~~Sale price$41,060.00you save $19,727.00~~

Key Features:

High-temperature conveyor dishmachine sanitizes up to 225 racks per hour while using about 0.68 gallons of water per rack (about 153 gallons per hour).
Single-tank design with 21-gallon wash tank and a 25-inch chamber clearance for large pots, pans, trays, and mixing bowls.
EnergyGuard control system helps reduce energy use by initiating operation when a rack is placed on the conveyor and powering down after the cycle.
Adjust-A-Peak control provides adjustable conveyor speed to match changing soil levels and traffic.
Stainless steel frame and legs with front dress panel, splash shields, stainless scrap baskets, and a self-draining stainless steel wash pump for durability and easier cleanup.
Built-in features include an externally operated drain lever, exhaust vent fan control, and an 18 kW wash tank heater.

Detailed Description

The Jackson WWS AJX-44CE is a high-temperature, single-tank conveyor dishmachine built for busy kitchens that need consistent throughput and sanitation. It delivers up to 225 racks per hour while using approximately 0.68 gallons per rack. Stainless steel construction, a 25-inch chamber clearance, and adjustable conveyor speed support everything from wares to larger pots and pans. Electric tank heat and automatic controls help maintain wash performance during peak service.

Product Details

Conveyor Dishmachine Built for Volume

Single-tank conveyor design for steady, continuous warewashing.

Adjust-A-Peak Adjustable Conveyor Speed

Tune throughput to match traffic and soil conditions.

Water-Saving Performance

High-temp model uses 0.68 gallons of water per rack.

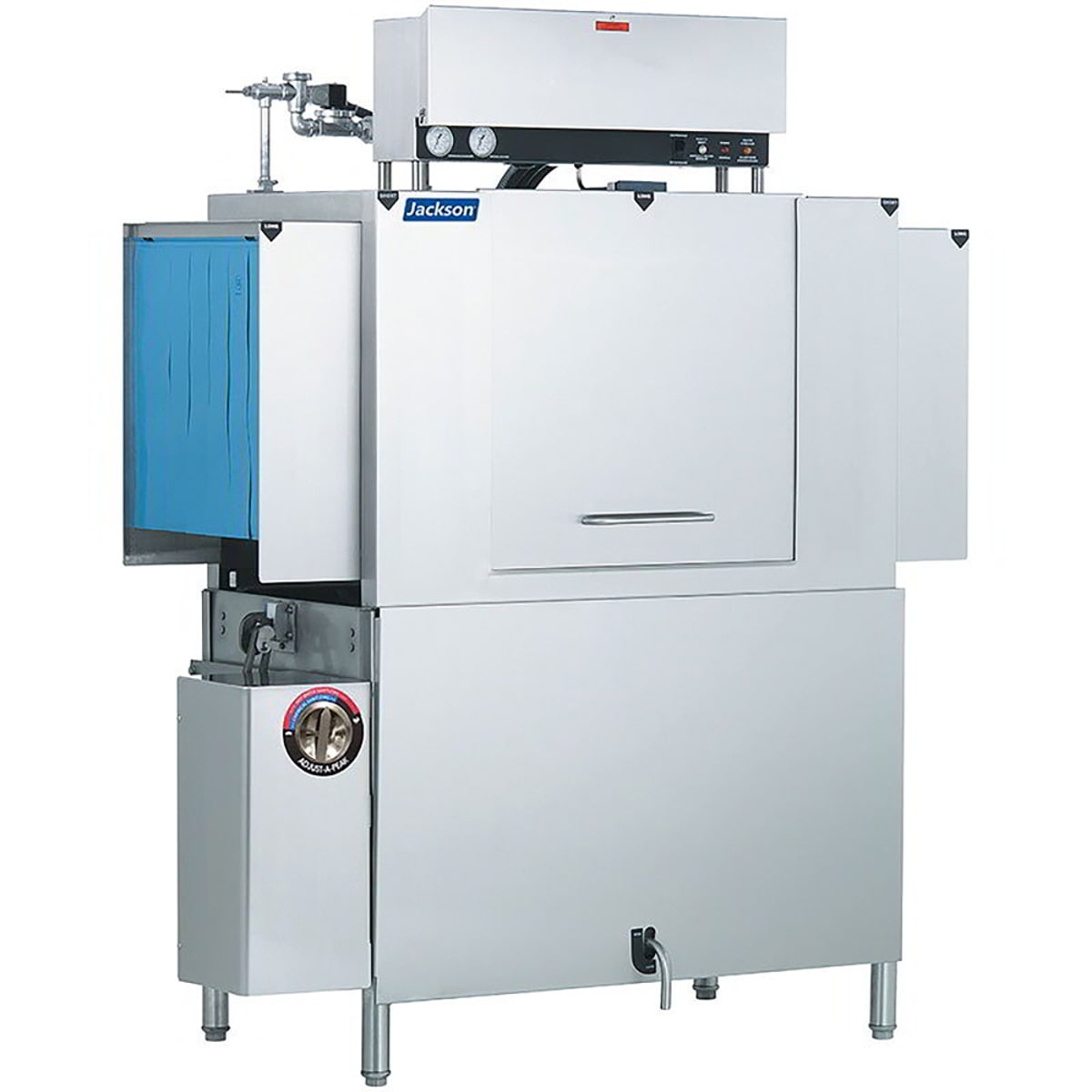

Jackson AJX-44CE conveyor dishwasher front view

Designed to Handle Larger Wares

AJX Series conveyors provide 25 inch chamber clearance to accommodate bulky items while keeping the wash line moving.

25 inch chamber clearance for larger wares
Fully automatic operation, including auto-fill
Electric tank heat

Performance Highlights

225

Racks per Hour (High Temp)

0.68

Gallons per Rack (High Temp)

25 in

Chamber Clearance

Ideal For

High-volume kitchens Schools and cafeterias Healthcare foodservice Busy restaurants

From the Cresco Resco Team

Why You'll Love It

A conveyor dishmachine that pairs high-volume throughput with smart controls and efficient water use.

Great for operations that need consistent rack flow during peak periods.
EnergyGuard control system helps conserve energy when the machine is not in use.
Adjust-A-Peak speed control lets you match wash pace to real-world demand.

Specifications

Brand	Jackson (Jackson WWS)
Model	AJX-44CE
Series	AJX Series
Dishwasher Type	Conveyor-type, single-tank
Sanitizing	High-temperature
Rack Capacity	225 racks/hour
Water Usage	0.68 gal/rack (153 gal/hour)
Wash Tank Capacity	21 gal
Chamber Clearance	25 in
Wash Section Length	18 in
Wash/Rinse Section Separation	18 in
Construction Material	Stainless steel frame and legs
Door Type	Lift up
Tank Heat	Electric
Wash Tank Heater	18 kW
Electrical	208 V, 60 Hz, 3 ph
Current Draw	57 A
Motor	1/4 HP
Minimum Wash Operating Temperature	160°F
Minimum Rinse Operating Temperature	180°F
Required Incoming Flow Pressure	15 PSI
Minimum Flow Rate	2.6 GPM
Minimum Incoming Water Line Size	1/2 in IPS
Minimum Drain Line Size	1 1/2 in IPS
Minimum Wall Clearance	4 1/2 in
Overall Dimensions (W x D x H)	60 in (or 62 in) x 25 in x 75.5 in
Shipping Weight	651 lb
Warranty	1-year limited parts & labor
