True Manufacturing TGM-DZ-77-SC/SC-B-W 77" Dual-Zone Curved Glass Refrigerated Display Merchandiser

$8,208.50 ~~Sale price$23,090.00you save $14,881.50~~

Key Features:

Dual-Zone Configuration: 77" wide case splits into independent refrigerated and dry zones within a single footprint, enabling simultaneous display of cold desserts and ambient bakery items without requiring two separate units.
NSF/ANSI Standard 7 Compliant: Certified to hold open food product for direct customer service, meeting strict sanitation and food safety requirements for commercial food retail environments.
Curved Single-Pane Tempered Glass Front: Extra-large viewing area maximizes product visibility and presentation appeal, ideal for high-end desserts, pastries, and deli items.
Factory Self-Contained R290 Hydrocarbon Refrigeration System: Environmentally responsible capillary tube system using R290 refrigerant with zero ozone depletion potential (ODP) and a global warming potential (GWP) of just 3, compared to legacy refrigerants R404a (3922 GWP) and R134a (1430 GWP). Maintains precise cabinet temperatures of 33°F to 41°F.
Six Adjustable Heavy-Duty PVC-Coated Wire Shelves: Each shelf is rated to support up to 150 lbs (69 kg). PVC bonding prevents chipping and peeling common with standard epoxy-coated shelving. Holds up to eight 18"L x 26"D and twelve 12"L x 18"D display pans.
LED Interior Lighting: Safety-shielded LED lights deliver brilliant, even illumination throughout the cabinet while conserving energy and reducing internal heat gain.
Black Powder Coated Exterior / White Interior: FDA-grade powder coated black rounded front and back panels with black aluminum aesthetic sides; white powder coated interior over CRS material. Alternate exterior and interior color options available (white or stainless, upcharge may apply).
Two Rear Sliding Glass Doors: Full-service rear access allows staff to efficiently restock and merchandise product without disrupting the front display.
Foamed-In-Place CFC-Free Polyurethane High-Density Insulation: Provides exceptional structural rigidity and insulation performance with zero ODP and zero GWP, supporting True's sustainability commitments.
Energy-Efficient ECM Motors and Oversized Compressor: Electrically commutated motors combined with a high-capacity balanced 1/4 HP refrigeration system exceed industry energy standards without compromising performance.
Made in the USA with Industry-Leading Warranty: Manufactured domestically using premium metals and components, backed by a 3-year parts and labor warranty plus a 7-year compressor warranty on HC (R290) models.
Bottom-Mounted, Free-Standing Design: Self-contained compressor located at the base for easy service access and flexible placement in any retail or foodservice environment.

Denver

Usually ready in 2-4 days

Fresno

Usually ready in 2-4 days

True Manufacturing TGM-DZ-77-SC/SC-B-W 77" Dual-Zone Curved Glass Refrigerated Display Merchandiser

$8,208.50~~$23,090.00~~

Detailed Description

The True Manufacturing TGM-DZ-77-SC/SC-B-W is a 77-inch dual-zone curved glass display merchandiser engineered for high-volume bakery and deli applications, combining sophisticated presentation with reliable refrigeration. Featuring a black powder-coated exterior with a white interior, the unit uses an environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of just 3. The self-contained, factory-balanced capillary tube refrigeration system maintains temperatures between 33°F and 41°F, making it ideal for pastries, cakes, and chilled deli products. NSF/ANSI Standard 7 compliant and backed by True's industry-leading 3-year parts and labor warranty plus a 7-year compressor warranty, this unit is a premium investment for any food retail or bakery operation.

Product Details

Dual-Zone Versatility

Two independent display zones with six adjustable wire cantilever shelves for maximum merchandising flexibility.

Consistent Refrigeration

Maintains 33°F to 41°F with an R290 eco-friendly refrigerant system boasting zero ozone depletion potential.

NSF Compliant & Commercial-Grade

NSF/ANSI Standard 7 certified for open food product, backed by a 3-year parts & labor and 7-year compressor warranty.

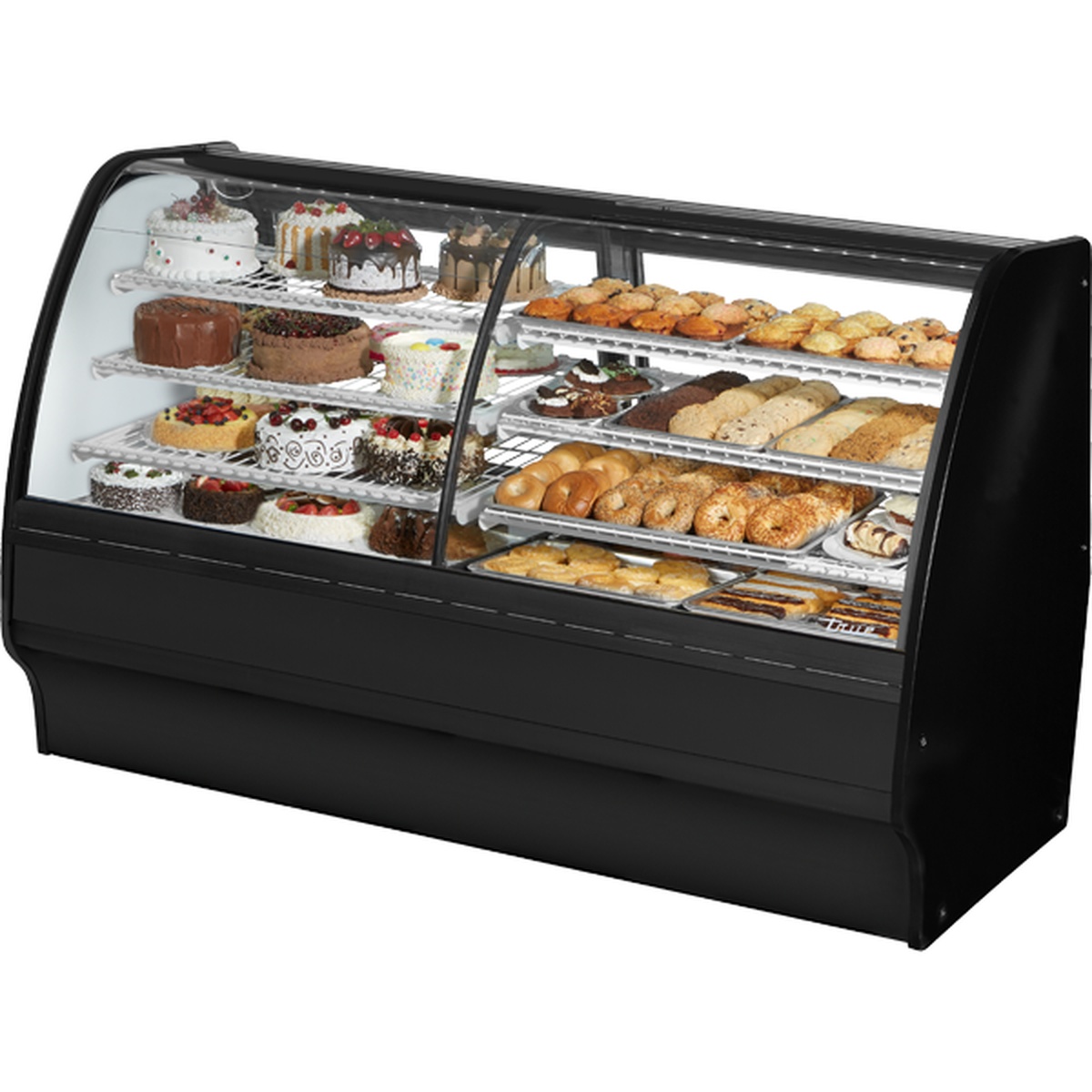

True TGM-DZ-77-SC/SC-B-W 77-inch dual-zone black curved glass refrigerated display case loaded with cakes, pastries, and baked goods on wire shelves

Sophisticated Presentation for High-End Desserts & Pastries

The True TGM-DZ-77-SC/SC-B-W combines elegant curved-glass styling with high-performance refrigeration, creating an outstanding showcase for premium baked goods, cakes, and cold deli products. The single-pane tempered curved glass front provides an extra-large viewing area that puts every item on display.

Black powder-coated exterior with white interior for striking contrast
Two rear sliding glass doors for seamless back-of-counter access
Safety-shielded LED interior lighting for even, brilliant illumination
Solid-colored ends for a clean, polished look from every angle

Key Specifications

Shelves6 adjustable wire cantilever shelves

Temperature Range33°F to 41°F (0.5°C to 5°C)

Dimensions77.25"W x 39"D x 49.13"H

Electrical115V / 60Hz / 1-Phase, 10A, NEMA 5-15P

Pan Capacity8 large (18"x26") + 12 small (12"x18") display pans

Warranty3 years parts & labor, 7 years compressor

Performance at a Glance

77"

Wide Display Width

Adjustable Shelves

R290

Eco-Friendly Refrigerant

Rear Sliding Glass Doors

1/4 HP

Compressor Power

150 lb

Max Load Per Shelf

Ideal For

Bakeries & Patisseries Grocery Deli Departments Cafes & Coffee Shops Hotel Lobbies & Catering High-Volume Dessert Bars

From the Cresco Resco Team

Why You'll Love It

The True TGM-DZ-77-SC/SC-B-W delivers a compelling blend of eye-catching design and reliable commercial refrigeration, making it an outstanding investment for any high-volume foodservice operation.

Perfect for bakeries, delis, and cafes that need to refrigerate and display premium desserts and pastries with maximum visual impact.
The dual-zone configuration allows simultaneous display of refrigerated items alongside ambient baked goods, all behind one stunning curved glass front.
Built in the USA with CFC-free high-density polyurethane insulation and R290 refrigerant, it supports both operational efficiency and environmental responsibility.

Specifications

Brand	True Manufacturing
Model	TGM-DZ-77-SC/SC-B-W
Type	Dual Zone Curved Glass Display Merchandiser
Width	77.25"
Depth	39"
Height	49.13"
Cabinet Dimensions (W x D x H)	77 1/4" x 39" x 49 1/8"
Weight	940 lbs (427 kg)
Exterior Finish	Black (powder coated FDA)
Interior Finish	White (powder coated FDA over CRS)
Glass Style	Curved, single pane tempered
Number of Rear Doors	2 (sliding glass)
Number of Shelves	6 adjustable heavy-duty PVC coated wire shelves
Shelf Weight Capacity	150 lbs (69 kg) per shelf
Pan Capacity	Eight (8) 18"L x 26"D pans; Twelve (12) 12"L x 18"D pans
Lighting	LED interior, safety shielded
Temperature Range	33°F to 41°F (0.5°C to 5°C)
Refrigerant	R290 (hydrocarbon, 0 ODP, GWP of 3)
Compressor HP	1/4 HP
Compressor Location	Bottom mounted
Voltage	115V / 60 Hz / 1 Phase
Amperage	10.0 A
Plug Type	NEMA 5-15P
Service Type	Full Service
Installation Type	Free Standing
Insulation	Foamed-in-place, CFC-free polyurethane high-density (0 ODP, 0 GWP)
Compliance	NSF/ANSI Standard 7
Warranty	3 years parts & labor; 7 years on compressor (HC/R290 models)
Country of Manufacture	USA
