Maximum Visibility, Minimal Footprint

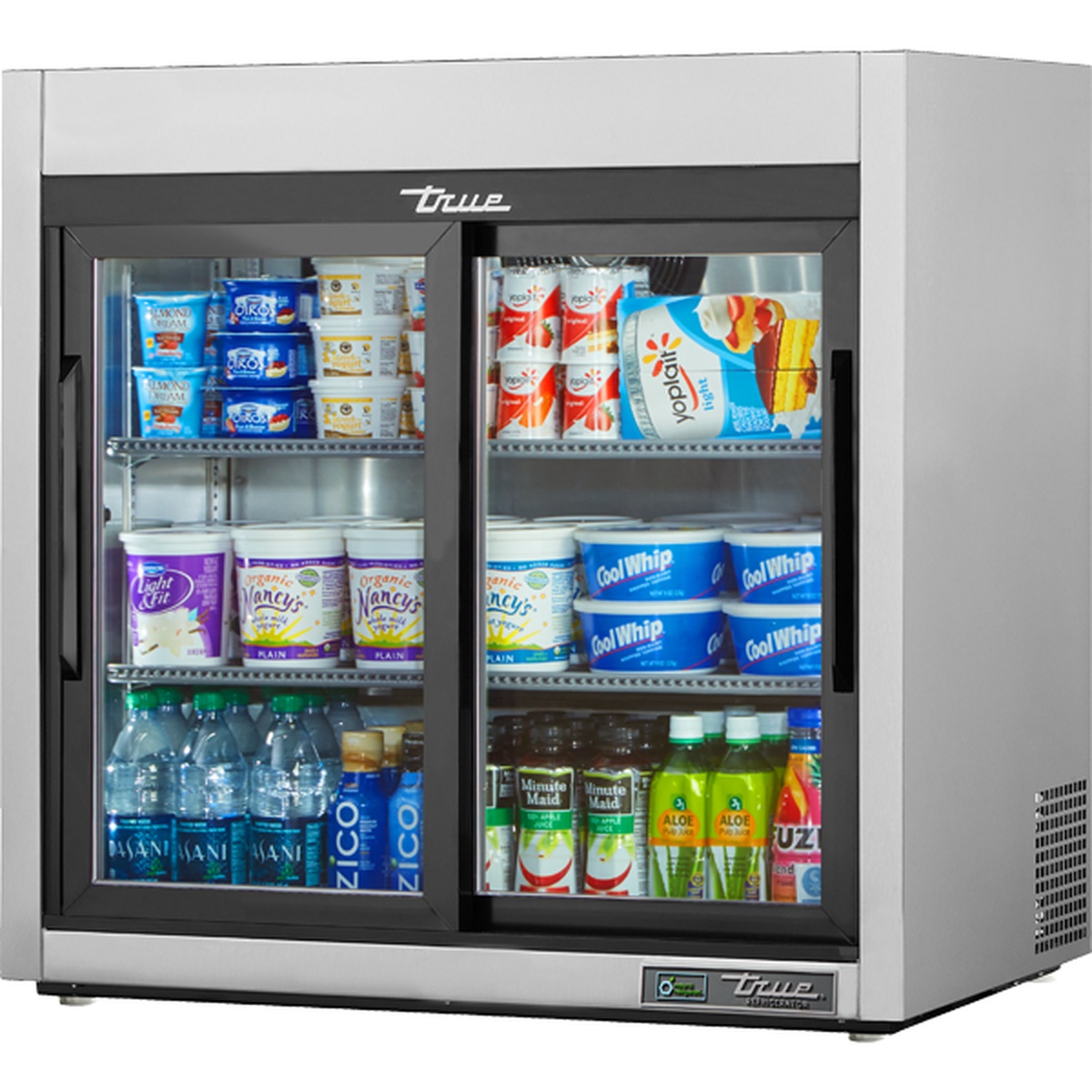

The TSD-09G-HC-LD features two sliding glass doors with "Low-E" double-pane thermal insulation, giving customers a clear, unobstructed view of your chilled products while keeping energy loss to a minimum. Its compact countertop form factor fits seamlessly into convenience stores, cafes, and delis without sacrificing storage capacity.
- 9 cu. ft. capacity for beverages, snacks, and grab-and-go items
- 2 sliding glass doors with 12" handles for easy access
- 3 adjustable PVC-coated wire shelves for flexible merchandising
- LED interior lighting for bright, even product illumination
Key Specifications
Built for Commercial Performance
The entire cabinet structure is foamed-in-place with high-density polyurethane insulation - also rated at zero ozone depletion potential - ensuring superior temperature retention and long-term energy savings. The stainless steel exterior (front, sides, back, and top) paired with an NSF-approved clear-coated aluminum interior liner and stainless steel floor with coved corners makes routine cleaning fast and thorough.
Ideal For
Why You'll Love It
The True TSD-09G-HC-LD delivers commercial-grade refrigerated merchandising in a compact countertop footprint, combining energy efficiency, food safety compliance, and eye-catching product display.
- Perfect for convenience stores, cafes, and delis looking to boost impulse sales with visible, accessible chilled products.
- The self-closing, "Low-E" double-pane sliding glass doors and R290 refrigerant keep operating costs low without sacrificing performance.
- Three adjustable shelves and LED interior lighting make it easy to customize your display and keep products looking their best at all times.
| Model | TSD-09G-HC-LD |
| Product Type | Reach-In Glass Slide Door Countertop Refrigerator |
| Capacity | 9 cu. ft. |
| Width | 36 in. |
| Depth | 21 in. |
| Height | 35.9 in. |
| Weight | 220 lbs. (100 kg) |
| Number of Doors | 2 |
| Door Style | Sliding Glass |
| Door Glass | "Low-E" Double Pane Thermal Insulated |
| Number of Shelves | 3 |
| Shelf Type | Adjustable PVC-Coated Wire |
| Temperature Range | 33°F to 38°F (0.5°C to 3.3°C) |
| Refrigerant | R290 Hydrocarbon (HC) |
| Refrigeration System | Factory-Engineered, Self-Contained Capillary Tube |
| Horsepower | 1/6 HP |
| Voltage | 115V / 60 Hz / 1 Phase |
| Amps | 1.9 A |
| NEMA Configuration | 5-15P |
| Exterior Finish | Stainless Steel (Front, Sides, Back, and Top) |
| Interior Finish | NSF-Approved Clear Coated Aluminum Liner; Stainless Steel Floor with Coved Corners |
| Insulation | Foamed-In-Place High Density Polyurethane (0 ODP / 0 GWP) |
| Interior Lighting | LED (Safety Shielded) |
| Handle Length | 12 in. (305 mm) |
| Certifications | NSF/ANSI Standard 7, UL Listed, CE Certified |
| ODP / GWP | Zero ODP / 3 GWP |
User manual not available.
