True MFG Co.

T-23DT-HC True 27" 1-Section Reach-In Refrigerator/Freezer

$8,418.08 ~~Sale price$27,856.00you save $19,437.92~~

Key Features:

Dual-temperature, one-section reach-in with solid swing half doors: refrigerator top section and freezer bottom section
Self-contained hydrocarbon refrigeration using R290 refrigerant; separate capillary tube systems for each compartment
Durable cabinet construction: stainless steel front with anodized aluminum ends and GalFan-coated steel back; clear-coated aluminum interior liner with stainless steel floor and coved corners
High-density, foamed-in-place polyurethane insulation with zero ODP and zero GWP
Two solid, right-hinged doors with torsion-type closure, locks, recessed handles, and tool-free removable magnetic gaskets
Bottom-mounted refrigeration package; welded, black powder-coated steel frame rail
Three adjustable gray PVC-coated shelves
4 inch stem casters included; front casters include locks
Exterior digital temperature displays for each zone

Detailed Description

The True T-23DT-HC is a one-section, dual-temperature reach-in designed to deliver refrigerated storage up top and frozen storage below in a compact footprint. Two independent, self-contained systems use R290 hydrocarbon refrigerant to maintain separate zones for consistent product quality. Solid half doors, stainless and aluminum construction, and a stainless floor with coved corners support daily durability and easier cleaning. Digital temperature displays, LED interior lighting, and adjustable shelving help staff organize and monitor inventory at a glance.

Product Details

Dual Temperature Storage

Independent refrigerator and freezer zones with exterior digital temperature displays.

Compact One Section Footprint

Two half-size solid doors with separate upper and lower compartments for organized storage.

Built for Foodservice

Stainless steel front with an aluminum interior liner and stainless floor with coved corners.

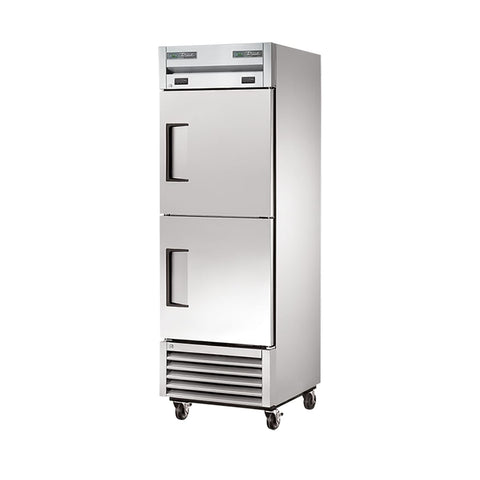

Front view of True T-23DT-HC reach-in dual temperature refrigerator freezer on casters

One Cabinet, Two Cold Zones

The T-23DT-HC combines a top refrigerator section and bottom freezer section in one reach-in cabinet.

Refrigerator range: 33 to 38F
Freezer operating temperature: -10F
Two solid, right-hinged half doors help reduce temperature loss during access

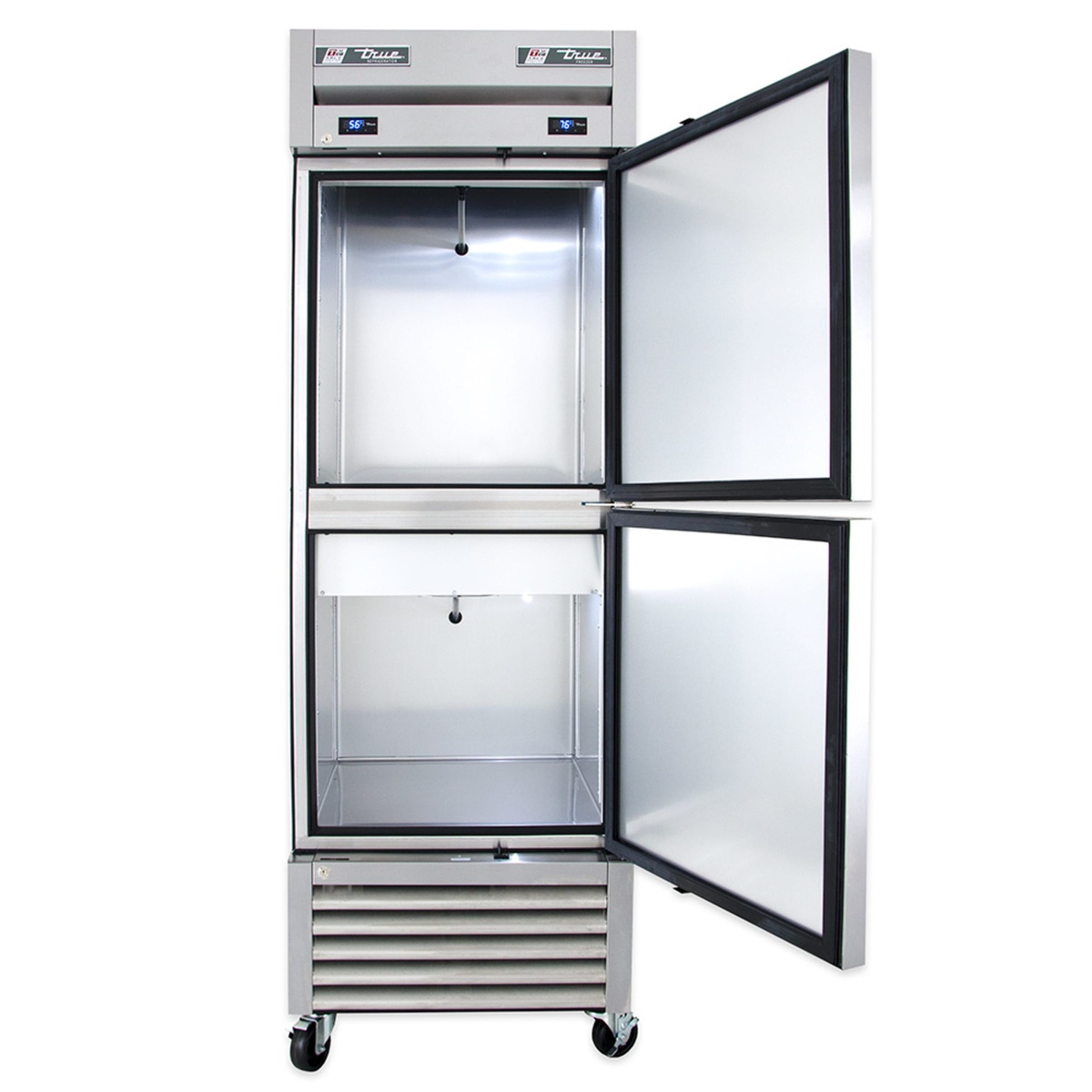

True T-23DT-HC with both solid doors open showing separate upper and lower compartments

Organized Storage and Easy Access

Separate compartments support clear product separation for refrigerated and frozen inventory.

Three PVC-coated adjustable shelves
LED interior lighting for visibility
Magnetic door gaskets remove without tools for easier upkeep

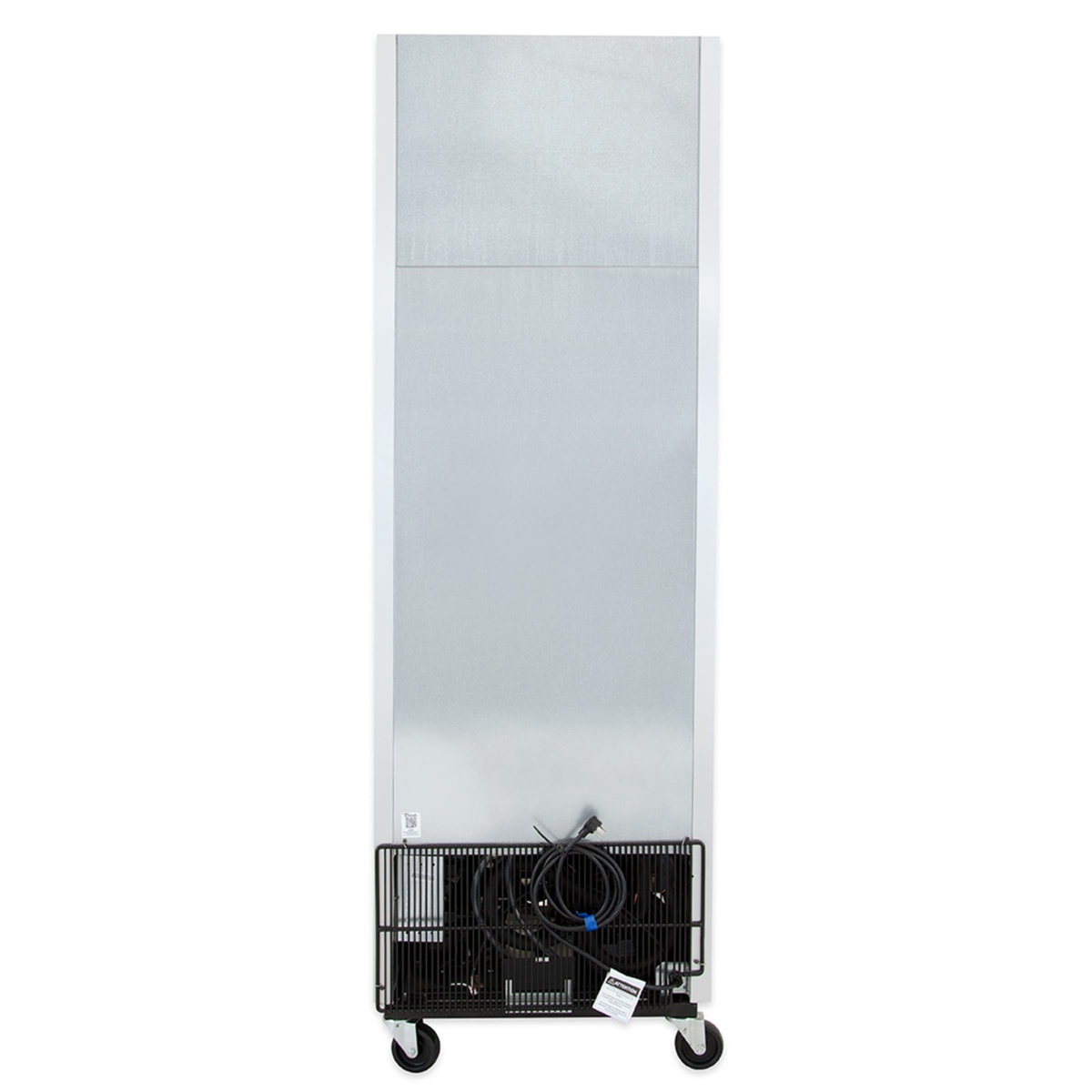

Rear view of True T-23DT-HC showing back panel and lower condenser area

Self-Contained Hydrocarbon Refrigeration

Designed for commercial kitchens, this unit uses R290 hydrocarbon refrigerant and a bottom-mounted system.

R290 (hydrocarbon) refrigerant
115V power with NEMA 5-15P plug
Casters fitted to the frame rail, with locks on the front pair

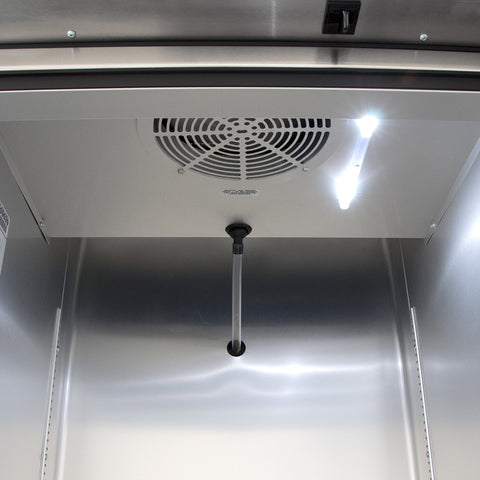

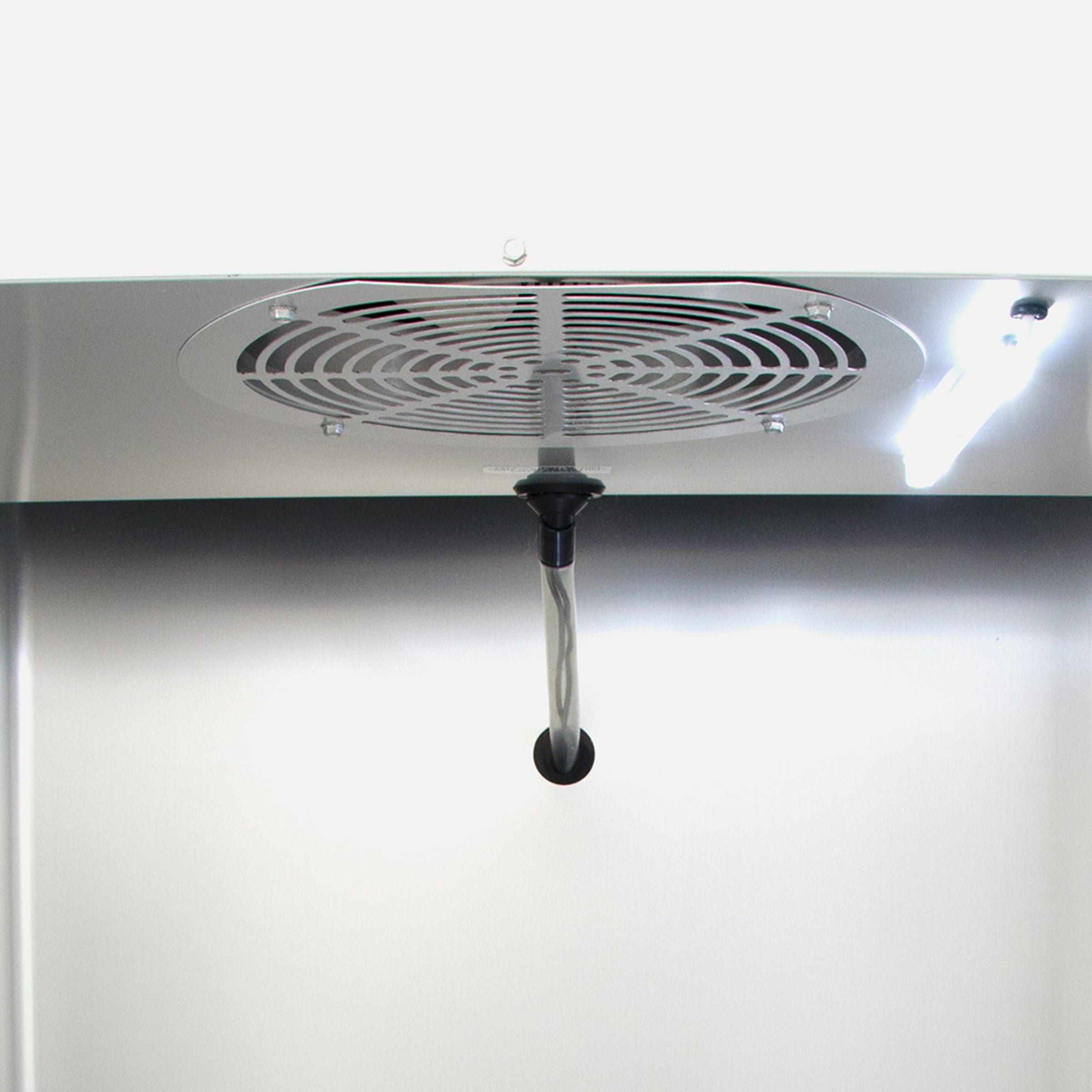

Interior ceiling detail of True T-23DT-HC showing evaporator fan cover and light

Designed for Even Cooling and Visibility

Interior lighting and airflow components are positioned to help maintain consistent cabinet conditions and improve product visibility.

LED interior lighting
Interior clear coated aluminum liner
Stainless steel floor with coved corners for simpler cleaning

From the Cresco Resco Team

Why You'll Love It

A compact reach-in that gives you refrigerated and frozen storage in one cabinet, without giving up durability.

Great for kitchens that need dual-temp storage in a small footprint.
Solid half doors, stainless front, and commercial-grade interior materials built for daily use.
Pairs well with busy prep lines where quick access and clear organization matter.

Specifications

Manufacturer	True Manufacturing (True Mfg. Co.)
Model	T-23DT-HC
Equipment Type	Reach-in dual temperature refrigerator/freezer (top refrigerator, bottom freezer)
Section Count	1
Total Capacity	19.7 cu ft
Door Count	2
Door Style	Half-size solid swing doors
Hinge Configuration	Right hinged
Shelf Count	3
Shelf Type	PVC-coated wire shelves (adjustable)
Temperature Range (Refrigerator)	33 to 38°F
Temperature (Freezer)	-10°F
Refrigerant	R290 (hydrocarbon)
Refrigeration System	Self-contained
Compressor Location	Bottom mounted
Thermometer/Display	Exterior digital temperature display
Exterior Construction	Stainless steel front; aluminum ends/sides; GalFan-coated steel back
Interior Construction	Clear-coated aluminum liner; stainless steel floor with coved corners
Insulation	Foamed-in-place high-density polyurethane (zero ODP, zero GWP)
Mobility	4 in stem casters (front locking)
Overall Dimensions (W x D x H)	27.03 in x 30.34 in x 83.34 in
Electrical	115 V, 60 Hz, 1 phase
Amps	4.1 A
Plug	NEMA 5-15P
Unit Weight	335 lb
Warranty	7-year parts and labor; 7-year compressor
Country of Origin	Made in USA
