MANITOWOC

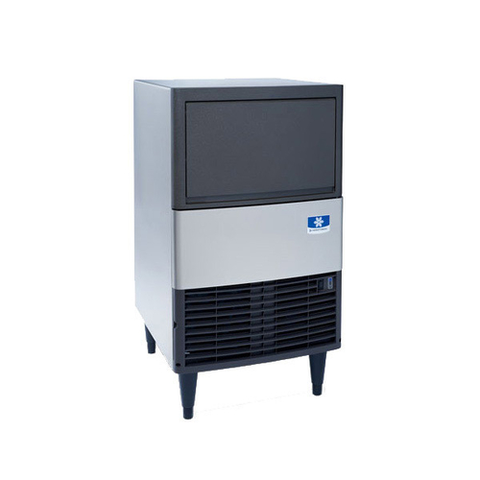

Manitowoc UDE0065A NEO Undercounter Ice Maker, Cube-Style, Air-Cooled, 57 lbs/Day

$2,319.00 ~~Sale price$5,332.00you save $3,013.00~~

Key Features:

NEO Series Undercounter Ice Machine with Integrated Bin: Part of Manitowoc's NEO ice maker series, this self-contained unit combines an ice maker and storage bin in one compact stainless steel cabinet, fitting under standard counters or functioning as a standalone unit.
Up to 57 lbs/Day Ice Production with 31-lb Storage Capacity: Produces up to 57 lbs of full dice-cut ice per 24 hours under ideal conditions (70°F air / 50°F water), with a 31-lb storage bin to maintain supply during peak demand periods.
Full Dice Ice at 7/8 in. x 7/8 in. x 7/8 in.: Produces consistent, full-size dice cubes ideal for beverages, food service, healthcare, and hospitality applications.
AlphaSan Antimicrobial Protection: An AlphaSan antimicrobial agent is built into key internal components to inhibit bacteria and mold growth between cleanings, supporting food safety and extended cleaning intervals.
Front-Breathing Air-Cooled Design with Reusable Air Filter: Front intake and exhaust design allows for flexible installation without side clearance requirements for airflow; the accessible, reusable air filter supports longer operation in dusty or greasy environments.
Seamless Polyethylene Bin Liner with Slide-Out Door: The crevice-free polyethylene liner simplifies sanitation, while the forward-sliding bin access door provides convenient access to ice and internal refrigeration components.
Programmable Production Delay: Configurable 4, 12, or 24-hour production delay allows operators to optimize ice output based on actual demand cycles, reducing energy consumption during off-peak hours.
Air-Cooled R134A Refrigeration System: Uses environmentally responsible R134A refrigerant with foamed-in-place, CFC-free insulation for efficient and reliable refrigeration performance.
Simple Front-Panel Operation: On/off/clean selector switch on the front panel, plus indicators for full bin and service alerts, makes daily operation and maintenance straightforward for staff.
Flexible Installation with Adjustable Legs and Flat Plug: Six-inch adjustable legs accommodate uneven floors, and a flat right-angle NEMA 5-15P plug enables installation in tight undercounter spaces.
NSF, cULus, and CE Certified: Meets rigorous food safety and electrical safety standards for commercial use across foodservice, healthcare, and institutional environments.
3-Year Warranty with 5-Year Compressor Parts Coverage: Backed by a 3-year warranty and a 5-year compressor parts warranty, providing long-term investment protection for commercial operators.

Fresno

Usually ready in 2-4 days

Las Vegas

Usually ready in 2-4 days

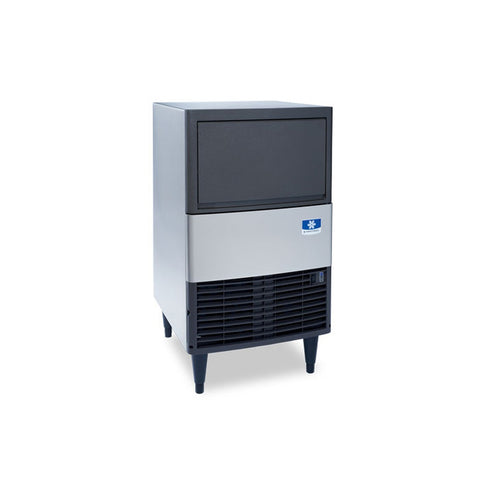

Manitowoc UDE0065A NEO Undercounter Ice Maker, Cube-Style, Air-Cooled, 57 lbs/Day

$2,319.00~~$5,332.00~~

Detailed Description

The Manitowoc UDE0065A is a self-contained, air-cooled undercounter ice maker from the NEO series, producing up to 57 lbs of full-cube dice ice per 24 hours with a 31-lb integrated storage bin. Built with a stainless steel cabinet and compact footprint, it installs seamlessly under counters or operates as a standalone unit in food service, healthcare, office, or hospitality environments. AlphaSan antimicrobial protection is built directly into key internal components, inhibiting bacterial and mold growth between cleaning cycles. A front-breathing design with an accessible, reusable air filter and a sliding bin door provide straightforward maintenance access without pulling the unit from its installed position. Powered by a 115V/60 Hz single-phase R134a refrigeration system with a flat, right-angle plug, the UDE0065A is engineered for reliable performance in tight installations.

Product Details

57 lb Daily Ice Production

Produces up to 57 lbs of full dice ice per 24 hours with a 31 lb integrated storage bin.

AlphaSan® Antimicrobial Protection

Built into key internal components to inhibit bacteria and mold growth between cleanings.

Air-Cooled Efficiency

R134a air-cooled system with front-breathing design and an accessible, reusable air filter.

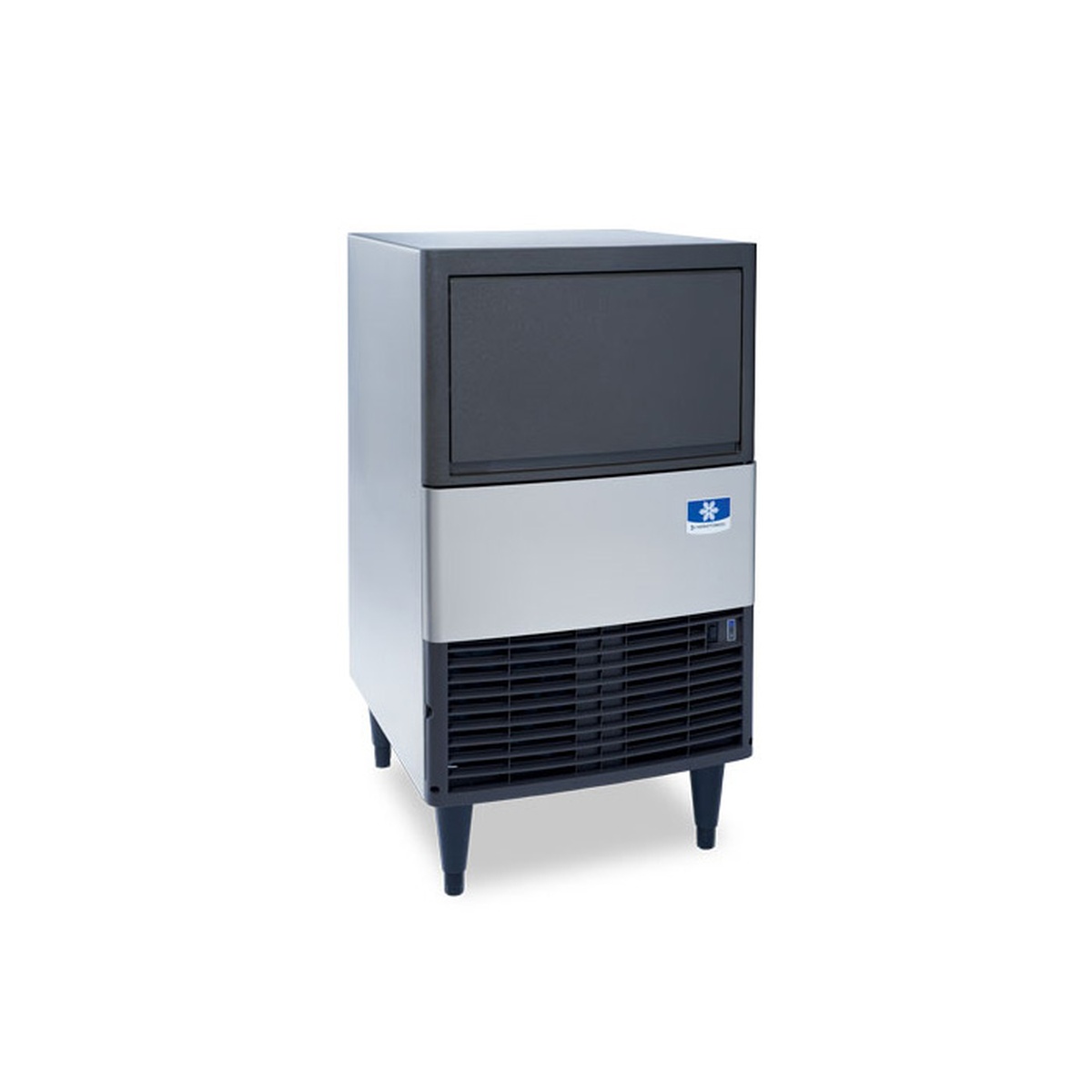

Manitowoc UDE0065A NEO undercounter ice machine with stainless steel cabinet and front air vents

Compact Design Built for Demanding Environments

The Manitowoc UDE0065A NEO® combines an ice maker and storage bin in one self-contained undercounter unit. Its stainless steel cabinet is both rust-resistant and durable, while its compact footprint fits seamlessly beneath counters or functions as a standalone unit.

Full dice ice cubes: 7/8 in. x 7/8 in. x 7/8 in.
Stainless steel exterior with foamed-in-place, CFC-free insulation
Adjustable legs and flat right-angle plug for installation in tight spaces
Bin access door slides clear for convenient ice access and service

Key Specifications

Production Capacity57 lbs / 24 hrs (ideal conditions)

Bin Capacity31 lbs of ice storage

Electrical115V / 60 Hz / 1 Ph, NEMA 5-15P

Dimensions (W x D x H)19.69 in. x 22.34 in. x 36 in.

CertificationsNSF, cULus, CE

Warranty3-year unit; 5-year compressor parts

Ideal For

Food Service Operations Healthcare Facilities Office Break Rooms Hotels and Hospitality Small-Volume Beverage Service

From the Cresco Resco Team

Why You'll Love It

The Manitowoc UDE0065A NEO® is the all-in-one undercounter ice solution that delivers consistent, sanitary full dice ice without demanding valuable floor space.

Perfect for food service, healthcare, and office environments needing reliable daily ice production.
AlphaSan® antimicrobial protection and a seamless polyethylene bin liner make sanitation and maintenance straightforward.
NSF, cULus, and CE certified with a 3-year warranty and 5-year compressor parts coverage for long-term confidence.

Specifications

Model	UDE0065A
Series	NEO®
Type	Ice Maker with Bin, Cube-Style (Undercounter)
Ice Type	Full Cube / Dice
Dice Ice Size	7/8 in. x 7/8 in. x 7/8 in.
24-Hour Ice Production (Max)	57 lbs
24-Hour Ice Production (70°F Air / 50°F Water)	57 lbs
24-Hour Ice Production (90°F Air / 70°F Water)	46 lbs
Bin Storage Capacity	31 lbs
Condenser Type	Air-Cooled
Refrigerant	R134a
Voltage	115V
Frequency	60 Hz
Phase	1
Amperage	5.3 A
Horsepower	1/4 HP
BTU (Average / Peak)	1,600 BTU / 2,350 BTU
NEMA Plug	5-15P (6-ft. cord, flat right-angle plug)
Width	19.69 in.
Depth	22.34 in.
Height	36 in.
Weight	109 lbs
Drain Type	Gravity
Water Inlet Size	0.38 in.
Incoming Water Pressure	34-90 PSI
Incoming Water Temperature	50-86°F
Surrounding Temperature Range	50-110°F
Required Clearances	5 in. on top, sides, and back
Cabinet Material	Stainless Steel
Front Style	Lift Door
Design	Standard Height
Special Features	AlphaSan® Antimicrobial Protection, Programmable Production Delay (4/12/24 hr), Reusable Air Filter, CFC-Free Foamed-In-Place Insulation, Adjustable Legs
Warranty	3-Year; 5-Year Compressor Parts
Certifications	NSF, cULus, CE
Replaces Model	QM-30A
