UNOX INC.

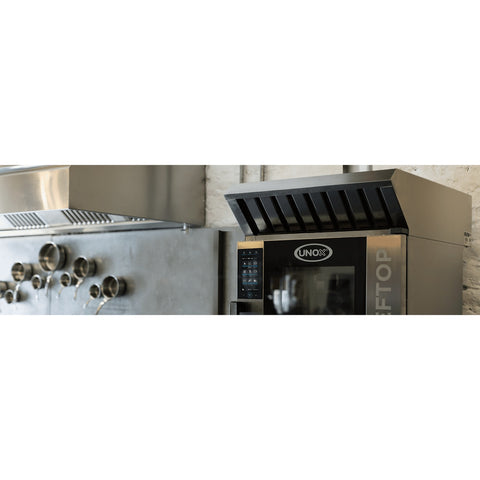

UNOX XAVHC-HC11 Hood with Steam Condenser for GN 1/1 Electric Ovens

$2,776.00 ~~Sale price$3,630.00you save $854.00~~

Key Features:

Designed specifically for UNOX CHEFTOP MIND.Maps Countertop GN 1/1 electric ovens, compatible with models XAVC-0511-EPL, XAVC-0511-EPR, XAVC-1011-EPL, and XAVC-1011-EPR
Self-cleaning condensing filter actively reduces steam output, helping lower ambient humidity and cut air conditioning costs in the kitchen
High-volumetric flow rate motor (310-390 m³/h) expels fumes efficiently over long duct runs, directing exhaust to a ceiling hood or directly outside the building
Intelligent power control automatically and continuously adjusts extraction power to match the quantity of steam being emitted, with suction automatically increasing when the oven door opens
Self-automatic washing of the condensation chamber and filters minimizes manual maintenance downtime
Easy-to-remove front filter is dishwasher safe for fast, thorough cleaning
Front safety thermostat constantly monitors ambient room temperature for added operational safety
Stainless steel rigid unibody construction creates seamless, professional aesthetic columns when stacked on MIND.Maps countertop ovens
Does not alter oven cooking performance, ensuring consistent results throughout ventilation operation
Single-phase, 0.1 kW / 0.5 A power draw at 208/240V, 60 Hz with a 4 in. exhaust chimney diameter; includes 1m hose and two hose clamps
UL and NSF certified for commercial foodservice use

UNOX XAVHC-HC11 Hood with Steam Condenser for GN 1/1 Electric Ovens

$2,776.00~~$3,630.00~~

Detailed Description

The UNOX XAVHC-HC11 is a ventless hood with integrated steam condenser engineered specifically for GN 1/1 countertop electric combi ovens in the CHEFTOP MIND.Maps lineup. Its stainless steel rigid unibody design houses a self-cleaning condensing filter that substantially reduces steam output while a high-volumetric flow rate motor (310-390 m³/h) handles fume expulsion over long distances without affecting oven performance. Intelligent, continuously variable power control automatically adapts extraction output to the quantity of steam being produced, and suction is instantly boosted when the oven door opens. Operating on 208/240V single-phase power at just 0.1 kW, the unit carries UL and NSF certifications, making it a code-compliant, energy-efficient ventilation solution for demanding commercial kitchens.

Product Details

High-Flow Fume Expulsion

High-volumetric flow rate engine (310-390 m³/h) exhausts fumes over long distances without impacting oven performance.

Steam Condensing Filter

Self-cleaning condensing filter significantly reduces steam output, lowering air conditioning costs and keeping the workspace comfortable.

Intelligent Power Control

Automatically and continuously adjusts extraction power to match steam output, with increased suction triggered when the oven door opens.

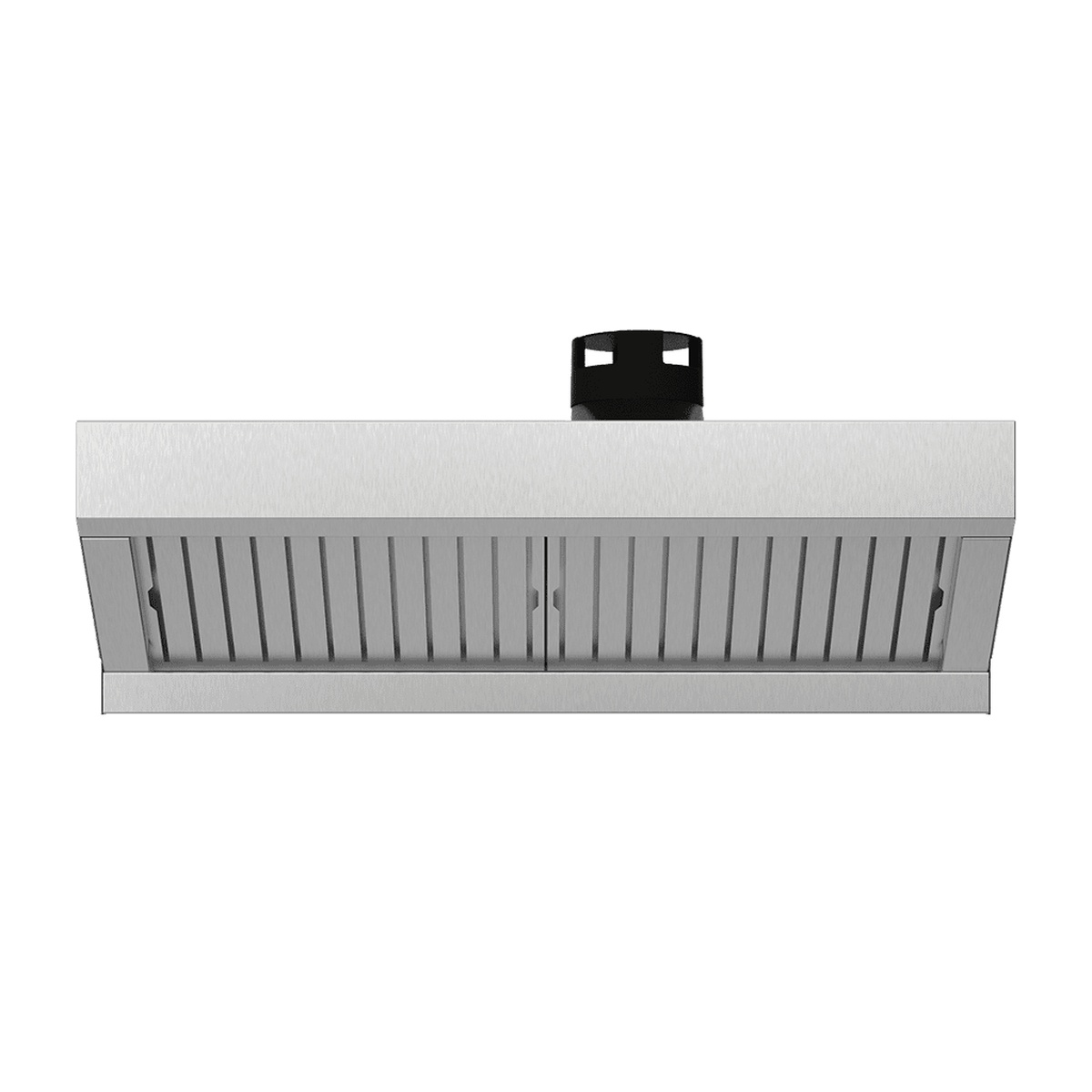

UNOX XAVHC-HC11 stainless steel ventless hood with steam condenser, front view showing slotted filter panel and top chimney outlet

Purpose-Built for CHEFTOP MIND.Maps Countertop Ovens

The XAVHC-HC11 is a compact ventless hood designed specifically for GN 1/1 CHEFTOP MIND.Maps countertop electric ovens. Its stainless steel rigid unibody construction creates seamless, uninterrupted aesthetic columns when stacked on compatible ovens.

Compatible with XAVC-0511-EPL/EPR and XAVC-1011-EPL/EPR combi ovens
Stainless steel unibody for a clean, professional appearance
Compact 29.5" width and 10.19" height fits countertop configurations
Includes 1m hose and two hose clamps

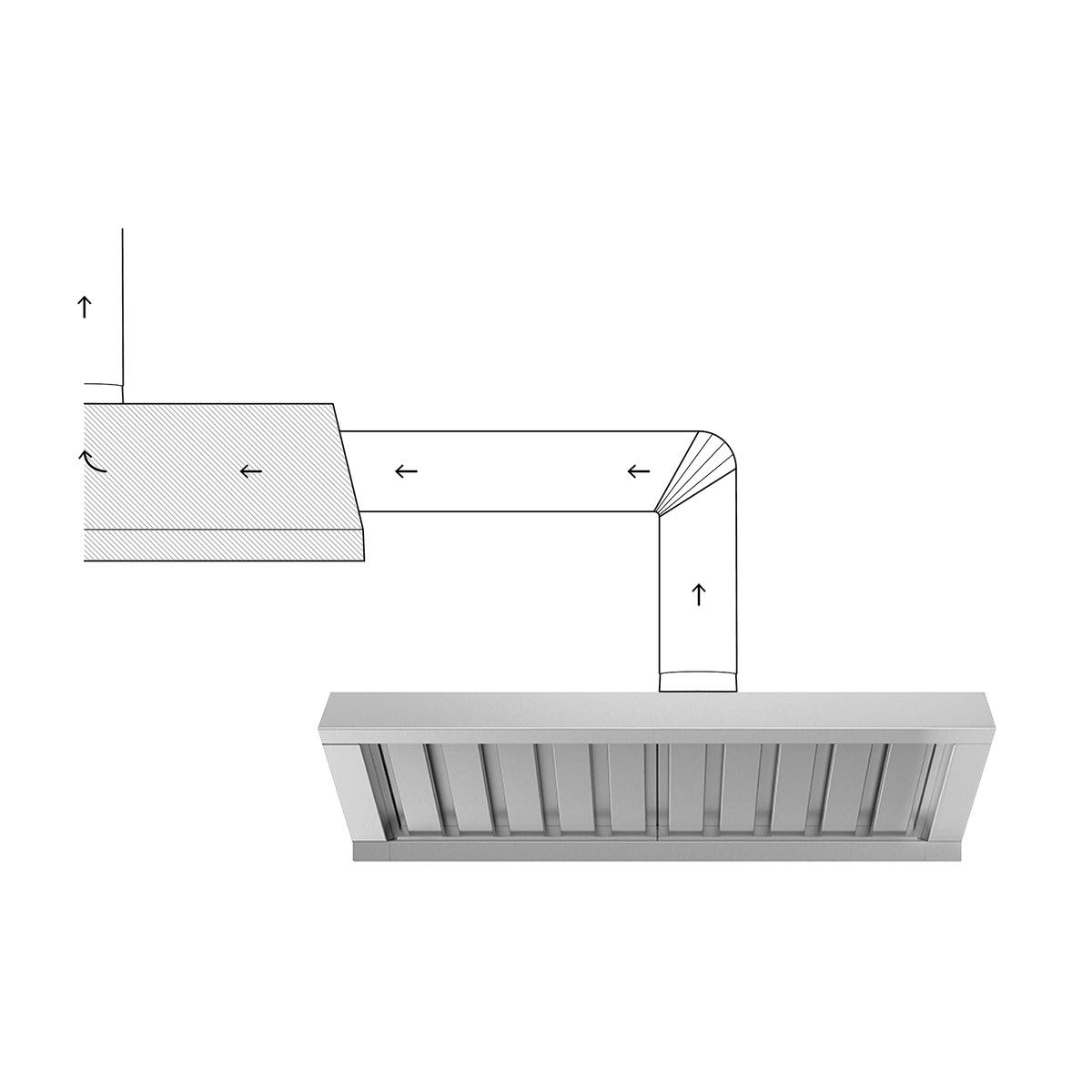

Technical installation diagram showing UNOX XAVHC-HC11 hood venting fumes via flexible hose to a ceiling exhaust or external duct

Flexible Installation for Any Kitchen Layout

Ideal for kitchens where fumes can be directed to a ceiling hood or routed directly outside the building. The 4 3/4" exhaust chimney and included hose allow versatile ducting configurations with minimal installation complexity.

4 3/4" chimney diameter for straightforward duct connection
Min/max airflow of 310-390 m³/h handles heavy cooking loads
Routes to ceiling hood or external exhaust point
Note: Stacking kit and installation may be required for select configurations (sold separately)

Key Specifications

Power0.1 kW / 0.5 A, Single-Phase

Airflow310-390 m³/h

ConstructionStainless Steel Rigid Unibody

CertificationsUL and NSF Listed

Voltage208/240 V, 60 Hz

Chimney Diameter4 3/4" (approx. 4 in)

Ideal For

Countertop combi oven installations Kitchens with ceiling hood access Spaces requiring steam reduction CHEFTOP MIND.Maps Plus users High-volume commercial kitchens

From the Cresco Resco Team

Why You'll Love It

The UNOX XAVHC-HC11 is the complete ventilation solution for CHEFTOP MIND.Maps countertop electric ovens, delivering smart steam management and powerful fume extraction in one compact, certified unit.

Perfect for commercial kitchens seeking ventless hood performance with minimal footprint and maximum oven compatibility.
Intelligent auto-adjusting extraction and self-cleaning condensing filter reduce maintenance time and energy costs.
UL and NSF certified with stainless steel unibody construction for lasting durability in demanding foodservice environments.

Specifications

SKU	XAVHC-HC11
Type	Ventless Hood with Steam Condenser
Oven Compatibility	CHEFTOP MIND.Maps™ Countertop GN 1/1 Electric Ovens (XAVC-0511-EPL, XAVC-0511-EPR, XAVC-1011-EPL, XAVC-1011-EPR)
Construction Material	Stainless Steel
Width	29.5 in
Depth	33.9 in
Height	10.19 in
Weight	50.7 lbs
Electric Power	0.1 kW (100 W)
Voltage	208/240 V
Amperage	0.5 A
Phase	Single Phase
Frequency	60 Hz
Exhaust Chimney Diameter	4 3/4 in
Min Airflow	310 m³/h
Max Airflow	390 m³/h
Includes	1m hose and two hose clamps
Certifications	UL, NSF
